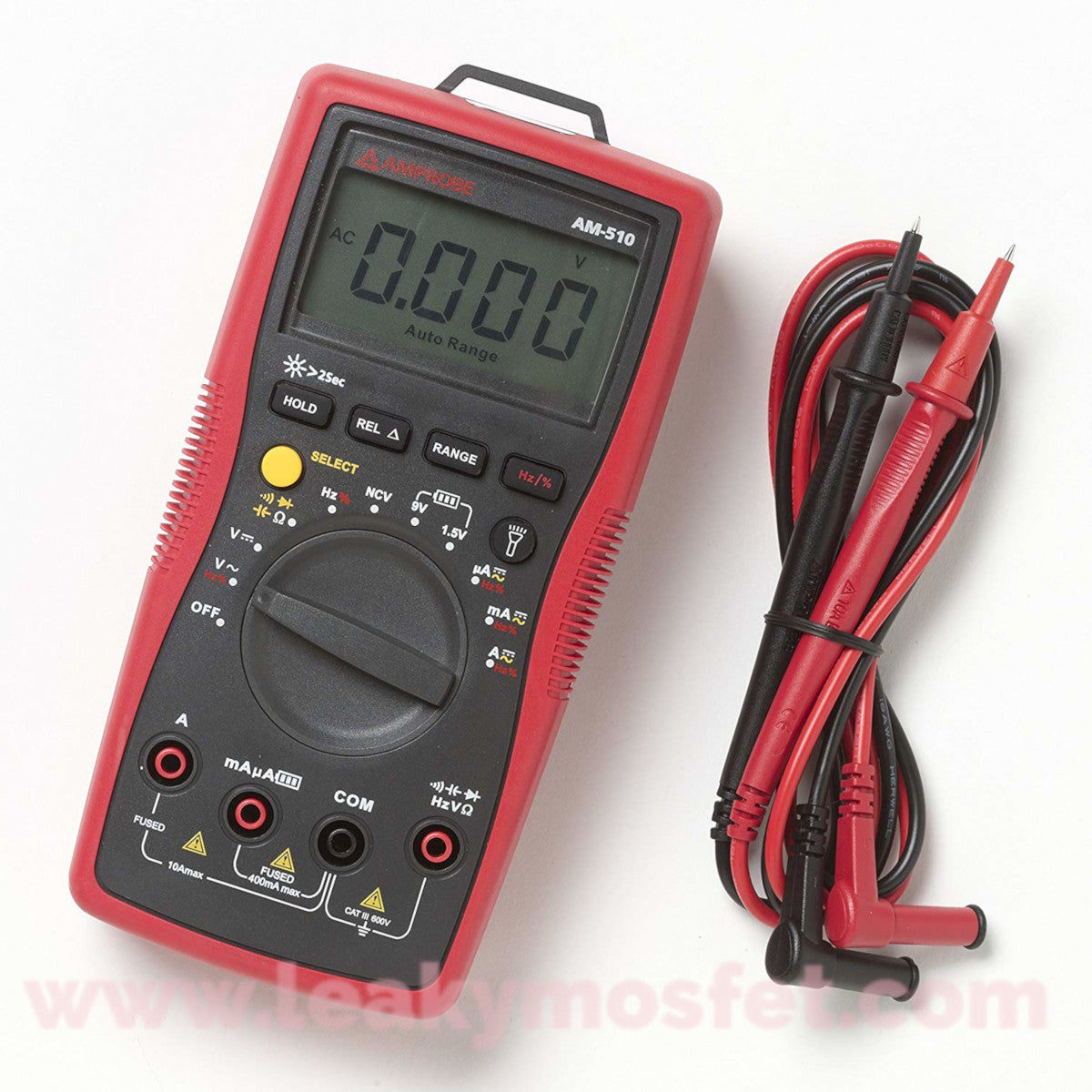

Amprobe AM-510 Digital Multimeter

The Amprobe AM-510 Commercial/Residential Multimeter is designed for light commercial and advanced residential applications. Re-wire electrical panels, install heated floors or new light fixtures, troubleshoot and repair home appliances, electrical sockets and automotive electrical problems with this easy-to-use multimeter. The AM-510 features a built-in flashlight to see wires and fuses in the dark, a rubber tilt stand and probe holder to give you the “third-hand” you need while taking measurements. Also offering safety features including Voltect non-contact voltage detection for quick go/no-go checks without the need for an additional tool. Compact yet tough, this multimeter is built to last through all your electrical projects

Specifications:

• AC Voltage - 400 mV 4.000 / 40.00 / 400.0 / 600 V
• DC Voltage - 400 mV 4.000 / 40.00 / 400.0 / 600 V
• Resistance - 400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms
• AC Current - 400.0 / 4000 µA 40.00 / 400.0 mA 4.000 / 10.00 A
• DC Current - 400.0 / 4000 µA 40.00 / 400.0 mA 4.000 / 10.00 A
• Frequency - 10Hz to 10MHz
• Capacitance - 40.00 / 400.0 nF 4.000 / 40.00 / 100.0 µF
• Battery Test - 1.5 V, 9 V

Datasheet:

https://bit.ly/2D9JoC4

Package Content:

• 1 x 9V(6F22) battery installed
• Test leads
• Users manual
