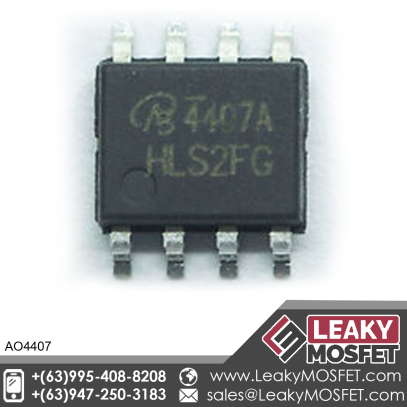

AO4407 4407 SOP-8 MOSFET

The AO4407/L uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications.AO4407 and AO4407L are electrically identical. -RoHS Compliant -AO4407L is Halogen Free

Specifications:

• VDS (V) = -30V
• ID = -12 A (VGS = -20V)
• RDS(ON) < 13mΩ (VGS = -20V)
• RDS(ON) < 14mΩ (VGS = -10V)
• RDS(ON) < 38mΩ (VGS = -5V)

Datasheet:

https://media.digikey.com/pdf/Data%20Sheets/Alpha%20&%20Omega/AO4407L.pdf
