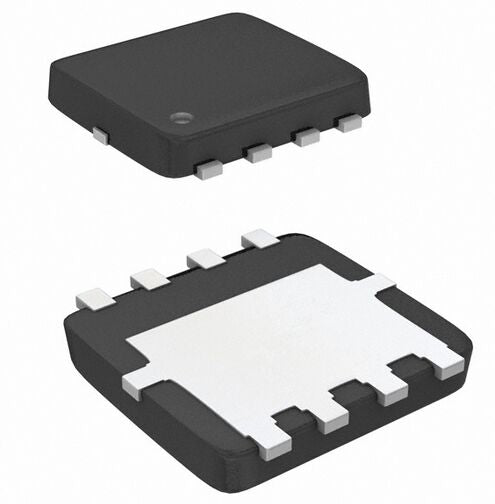

ao7934

Type Designator: AON7934

Type of Transistor: MOSFET

Type of Control Channel: NN -Channel

Maximum Power Dissipation (Pd): 23(25) W

Maximum Drain-Source Voltage |Vds|: 30 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 2.2 V

Maximum Drain Current |Id|: 16(18) A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 2.8(3.3) nS

Drain-Source Capacitance (Cd): 235(314) pF

Maximum Drain-Source On-State Resistance (Rds): 0.0102(0.0077) Ohm
