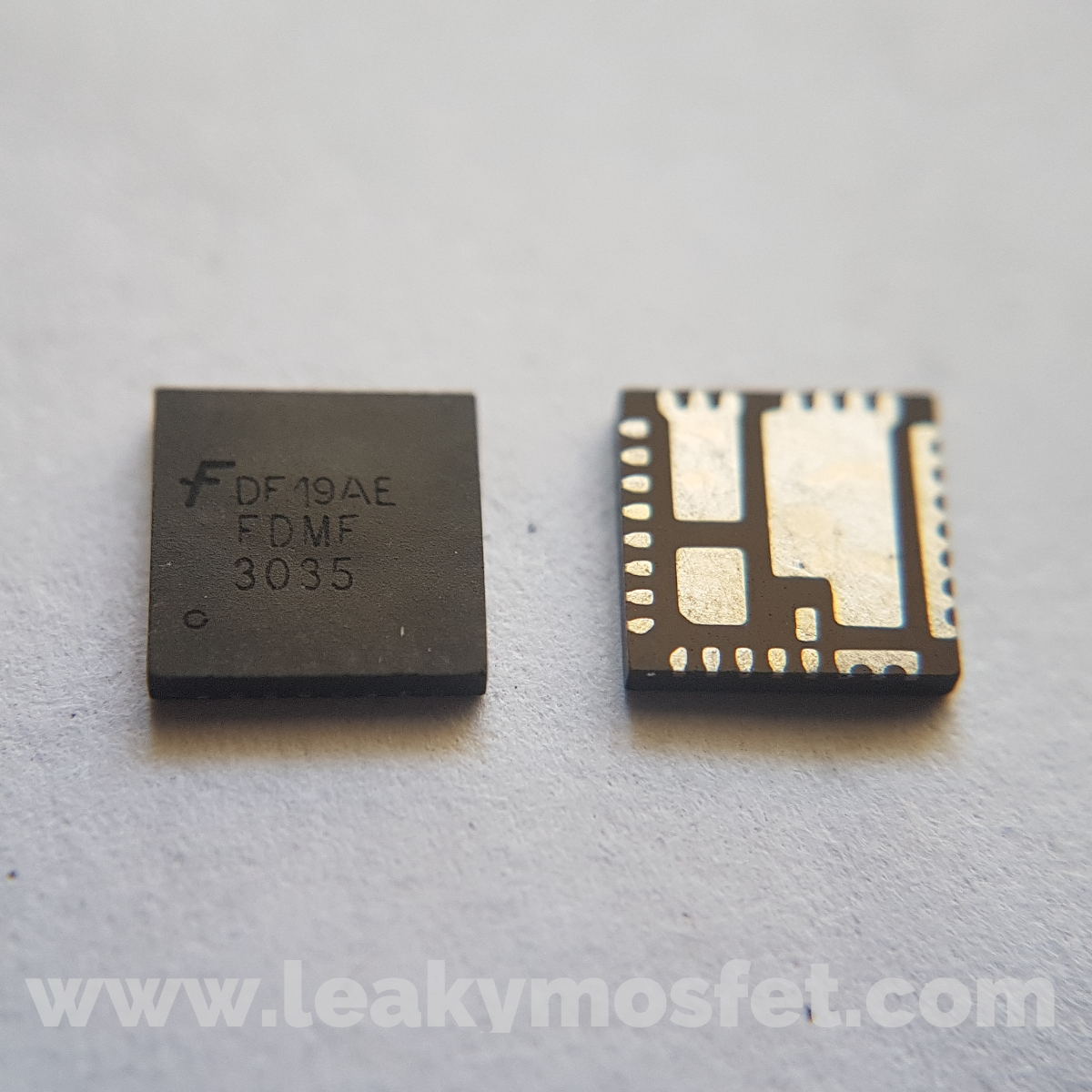

FDMF3035

Features

Supports PS4 Mode for IMVP-8
Compatible with Intersil IMVP-8 PWM Controller
Ultra-Compact 5 mm x 5 mm PQFN Copper-Clip Package with Flip Chip Low-Side MOSFET
High Current Handling: 50 A
3-state 5 V PWM Input Gate Driver
Low Shutdown Current : IVCC < 3 uA
Diode Emulation for Enhanced Light Load Efficiency
Fairchild PowerTrench® MOSFETs for Clean Voltage Waveforms and Reduced Ringing
Fairchild SyncFET™ Technology (Integrated Schottky Diode) in Low-Side MOSFET
Integrated Bootstrap Schottky Diode
Optimized / Extremely Short Dead-Times
Under-Voltage Lockout (UVLO) on VCC
Optimized for Switching Frequencies up to 1.5 MHz
Operating Ambient Temperature Range: -40°C to +125°C
Fairchild Green Packaging and RoHS Compliance
