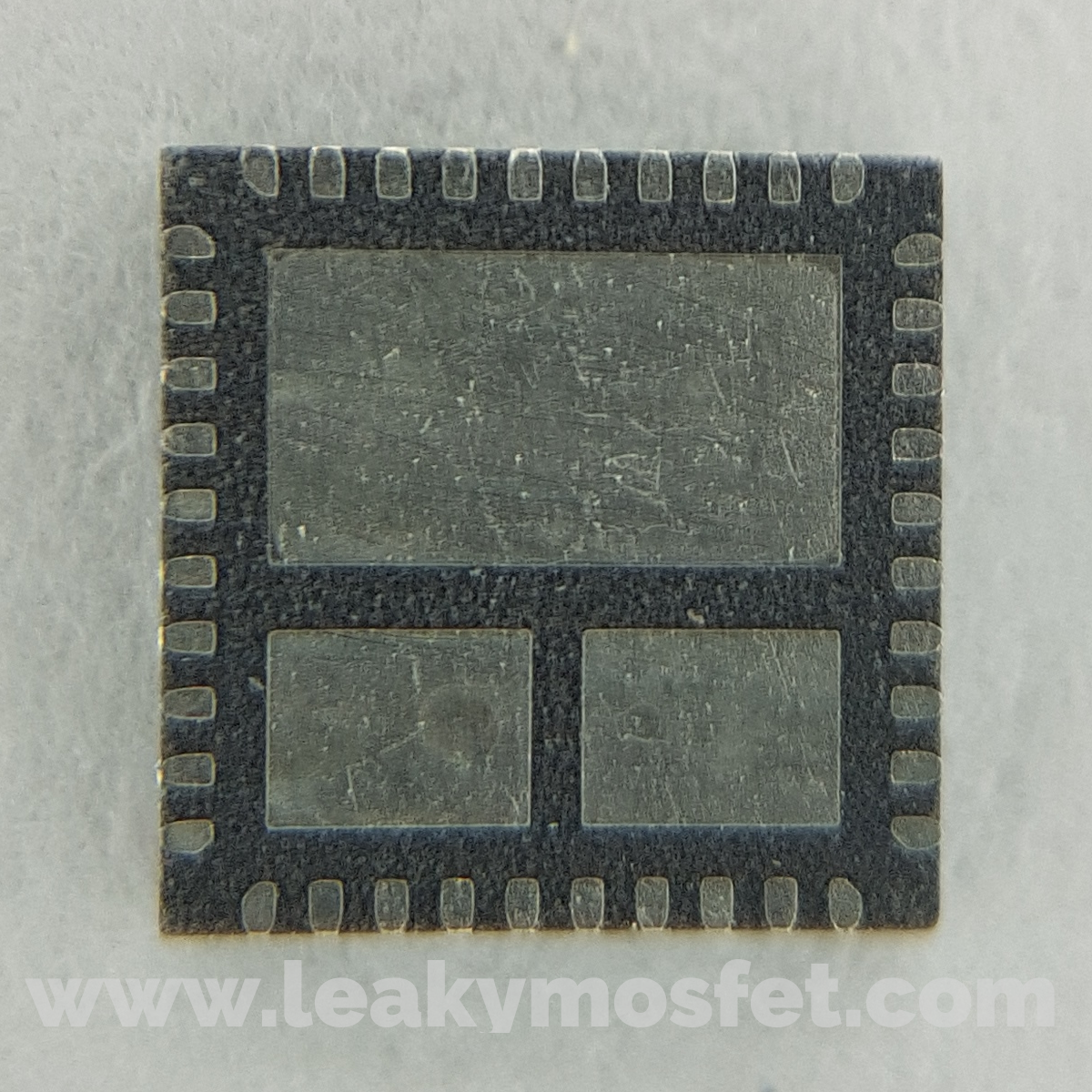

FDMF6823A FDMF

Features

Over 93% Peak-Efficiency
High-Current Handling: 55A
High-Performance PQFN Copper-Clip Package
3-State 5V PWM Input Driver
Skip-Mode SMOD# (Low-Side Gate Turn Off) Input
Thermal Warning Flag for Over-Temperature Condition
Driver Output Disable Function (DISB# Pin)
Internal Pull-Up and Pull-Down for SMOD# and DISB# Inputs, Respectively
Fairchild PowerTrench® Technology MOSFETs for Clean Voltage Waveforms and Reduced Ringing
Fairchild SyncFET™ (Integrated Schottky Diode) Technology in Low-Side MOSFET
Integrated Bootstrap Schottky Diode
Adaptive Gate Drive Timing for Shoot-Through Protection
Under-Voltage Lockout (UVLO)
Optimized for Switching Frequencies up to 1MHz
Low-Profile SMD Package
Based on the Intel® 4.0 DrMOS Standard
Fairchild Green Packaging and RoHS Compliance

Applications

• Core Power for Servers, Desktop Computers, Notebooks, Game Consoles, Networking, Storage, Telecom
• High-Current dc-dc Converters
• Multi-phase dc-dc Converters
