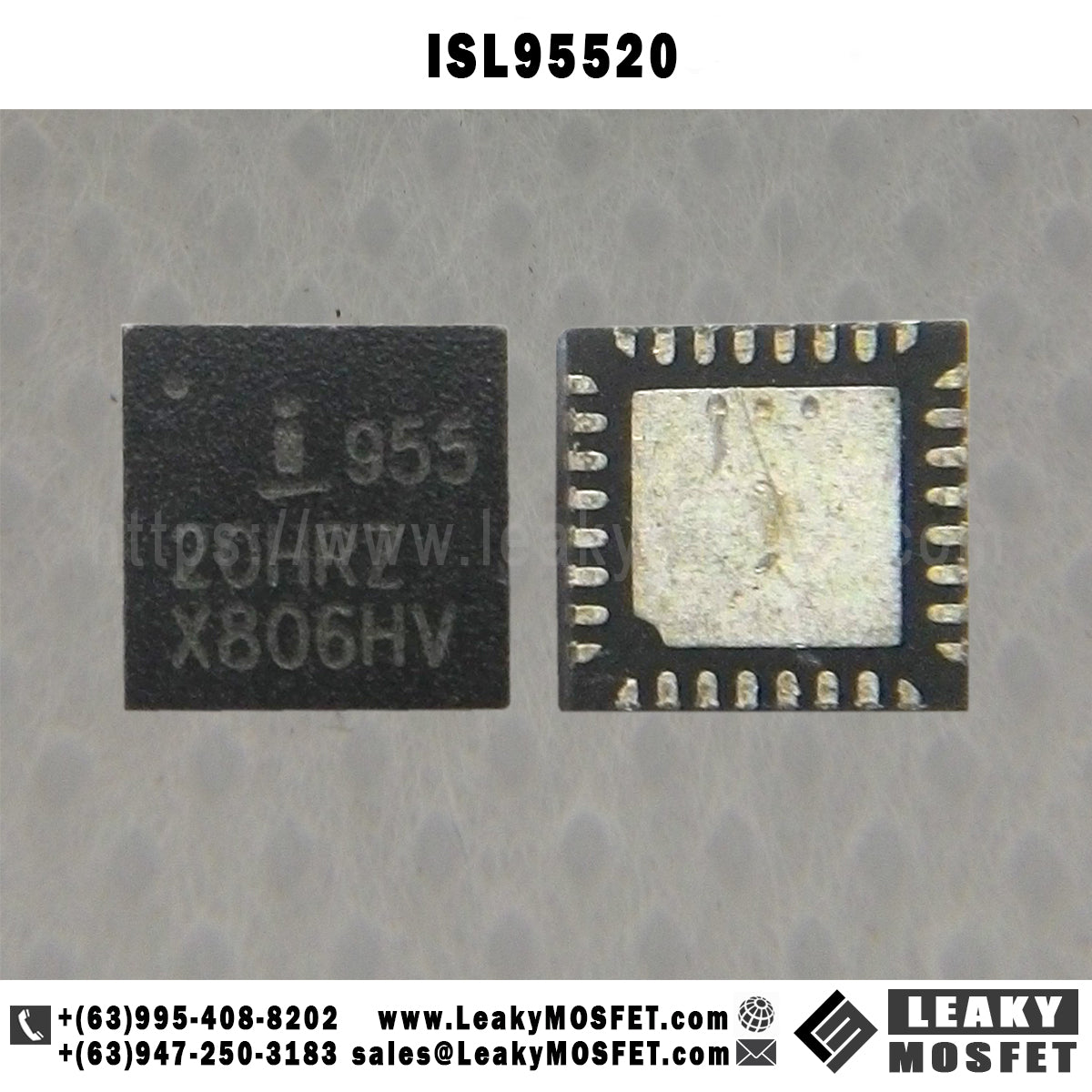

ISL95520 ISL 95520

Features:

• Configurable as HPB charger or NVDC charger

• Compliant with Intel PROCHOT# and PSYS requirements • Adapter current monitor and battery discharging current monitor

• Uses NFET for all the switches - Supports removal of battery during battery learn mode - Actively controlled inrush current to prevent FET damage

• SMBus programmable settings and high accuracy

• Comprehensive protection features include - PROCHOT# indicator for system low voltage, adapter overcurrent, battery overcurrent or system overheating - Hardware-based adapter-current and battery-current limits - Supports sudden removal of battery in system Turbo mode

• 16 switching frequency options from 350kHz to 1MHz

• Low quiescent current

• Intersil Robust Ripple Regulator (R3™) modulation scheme provides excellent light load efficiency and fast dynamic response

• 32 Ld 4x4mm2 QFN package

• Pb-free (RoHS compliant)

Datasheet:

https://bit.ly/2SpGE8e
