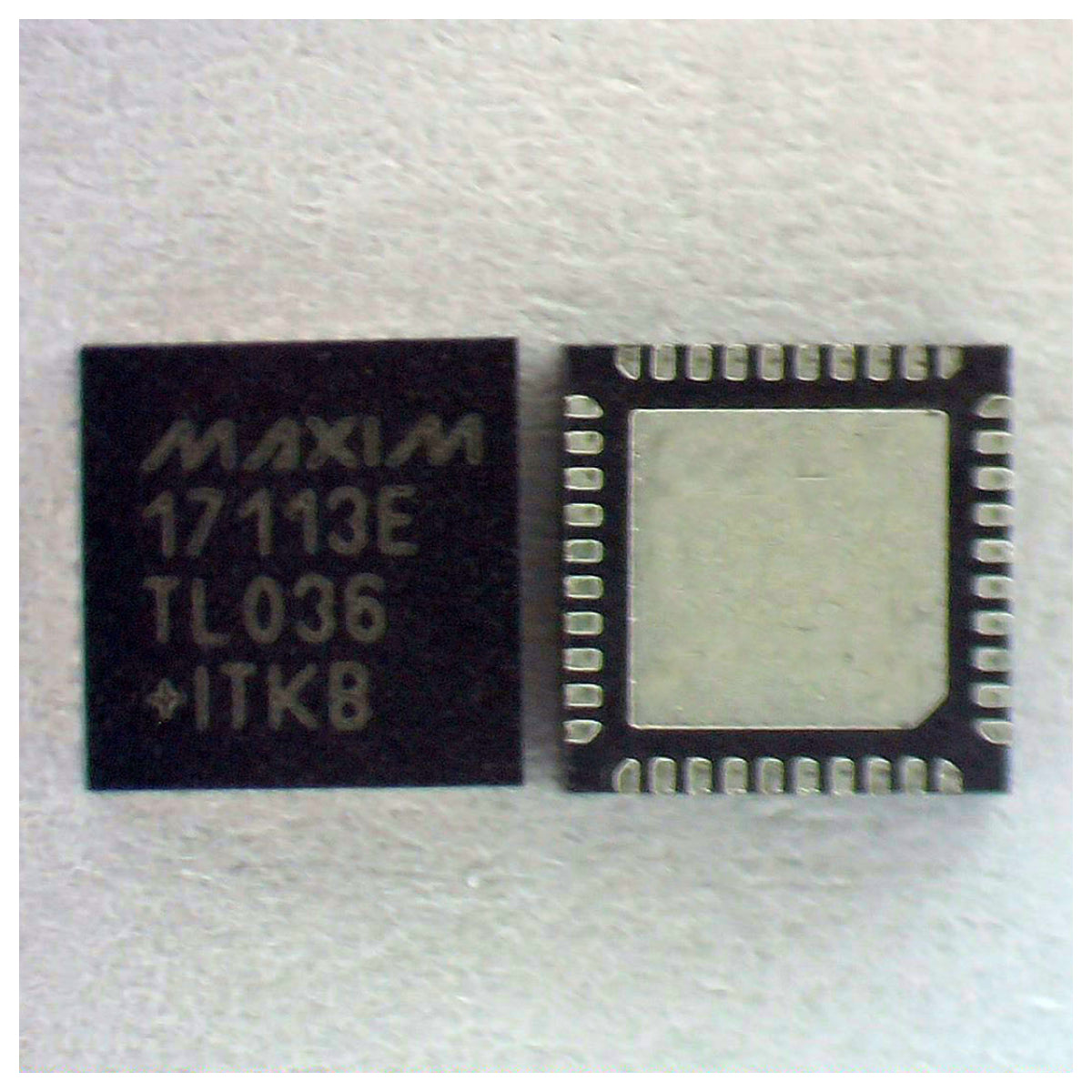

MAX17113

Product Description

The  MAX17113  multiple-output  power-supply  controllergenerates  all  the  supply  rails  for  thin-film  transistor(TFT)  liquid-crystal  display  (LCD)  panels  in  TVs  andmonitors operating from a regulated 12V input. Itincludes  a  step-down  and  a  step-up  regulator,  a  posi-tive and a negative charge pump, a Dual Mode™ logic-controlled  high-voltage  switch  control  block,  and  anadjustable-timing  power-good  output.  The  MAX17113can operate from 8V to 16.5V input voltages and is opti-mized  for  LCD  TV  panel  and  LCD  monitor  applicationsrunning directly from 12V supplies.

Features:

• Optimized for 10.8V to 13.2V Input Supply
• 8V to 16.5V Input Supply Range
• Adjustable Positive and Negative Charge-Pump
  Regulators
• 120mΩp-Channel FET for AVDD Sequencing
• Input Undervoltage Lockout and Thermal-
  Overload Protection
