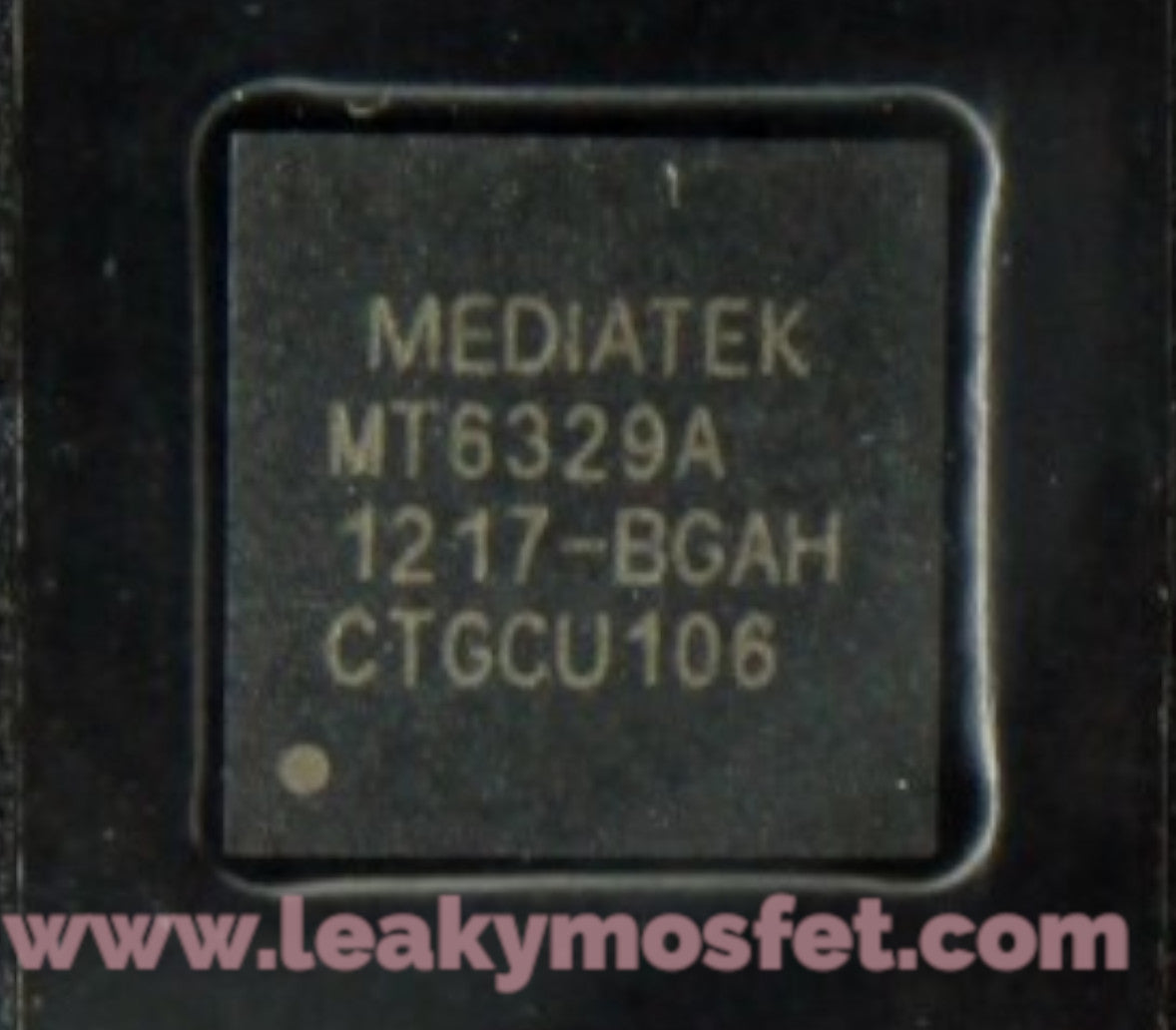

Mediatek MT6239A 6239A 6239 Power Management IC

MT6329 is a power management system chip optimized for 2G/3G handsets and smart phones, especially those based on the MediaTek MT6575 system solution. MT6329 contains 15 buck converters and 21 LDOs, which are optimized for specific 2G/3G/smart phone subsystems

Features:

• Input range: 3.4 ~ 4.3V
• Charger input of up to 10V
• 5 buck converters and 21 LDOs optimized for specific 2G/3G/smart phone subsystems
• Dual-channel, 3.7V 0.7W into 8Ω Class AB/D audio amplifiers
• Flexibility for various configurations of backlight LED drivers: 6ISINK/10WLED boost controller
• I2C interface
• Pre-charge indication
• Li-ion battery charging function
• Multi-purpose pins support either current sinks or analog switches
• Multi-purpose pins support either an RGB LED driver or an audio receiver
• VPROC with DVFS control
• Over-current and thermal overload protection
• Programmable under voltage lockout protection
• Watchdog timer
• Flexibility hardware PMIC reset function
• Power-on reset and start-up timer
• Precision voltage, temperature, and current measurement fuel gauge
• 155-pin TFBGA package

Datasheet:

https://bit.ly/2OxzMCs
