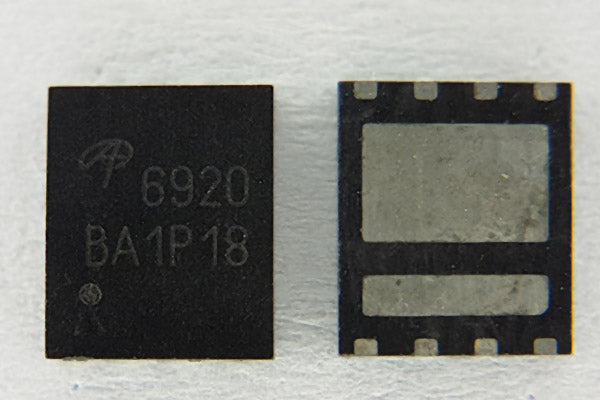

AON6920 N6920 6920 Dual N-Channel MOSFET DFN5X6

Brand new Dual N-Channel MOSFET

The AON6920 is designed to provide a high-efficiency synchronous buck power stage with an optimal layout and board space utilization. It includes two specialized MOSFETs in a dual Power DFN5x6A package. The Q1 "High Side" MOSFET is designed to minimize switching losses. The Q2 "Low Side" MOSFET is designed for low RDS(ON) to reduce conduction losses. The AON6920 is well-suited for use in compact DC/DC converter applications

Specifications:

• VDS-30V
• ID(at VGS=10V)=Q1 60A  Q2  85A
• RDS(ON)(at VGS=10V)=Q1<5.2mohms Q2„¦<1.8mohms
• RDS(ON) (at VGS = 4.5V)=Q1<7.8mohms ¦ Q2<2.7mohms

Datasheet:

https://bit.ly/2Oa48ud
