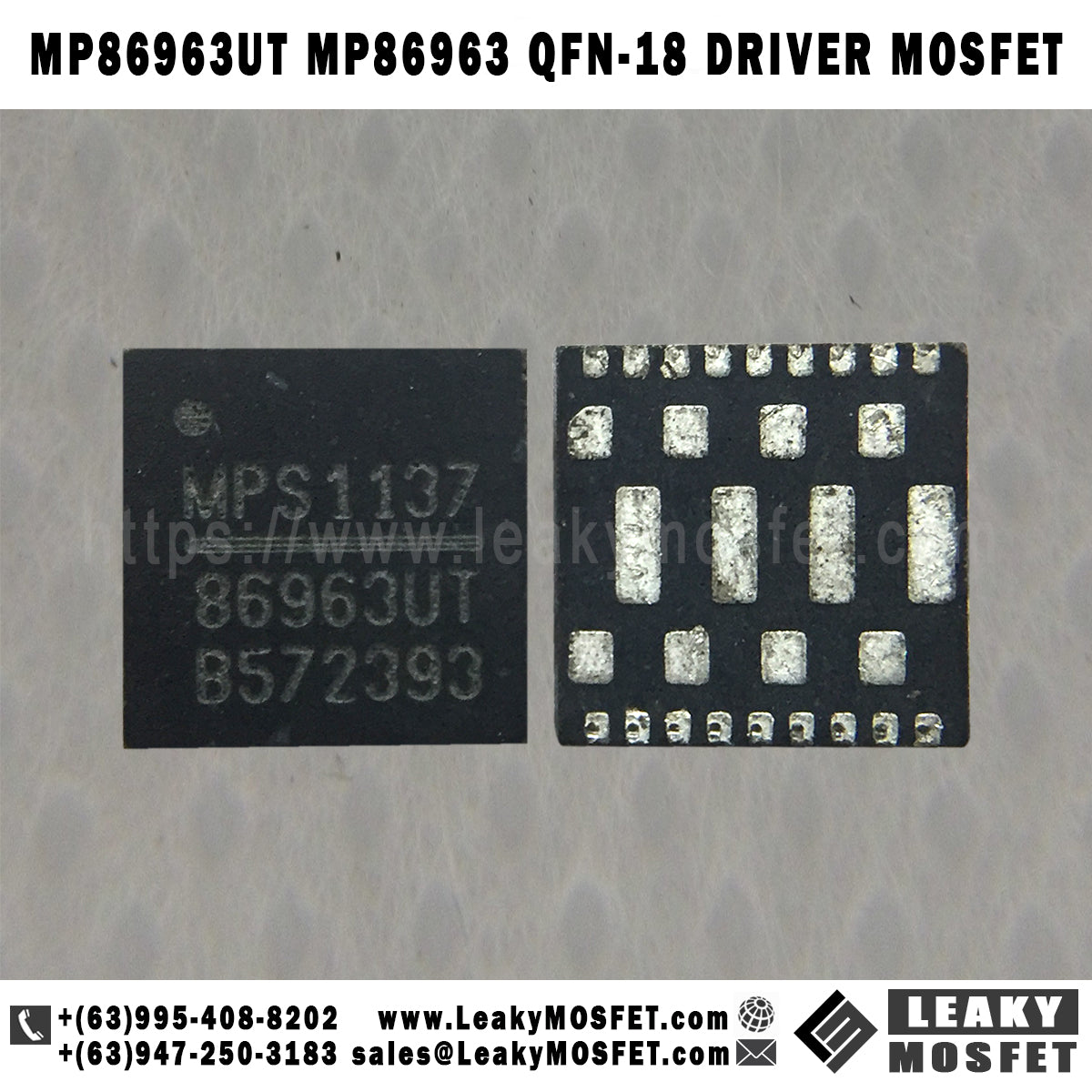

MP86963UT MP86963 QFN-18 DRIVER MOSFET

Description:

The MP86963 is a monolithic Half Bridge with built-in internal power MOSFETs and gate driver. It achieves 20A continuous output current over a wide input supply range. Integrating the Driver and MOSFETs results in high efficiency due to optimal dead time control and parasitic inductance reduction. The MP86963 is a Monolithic IC designed to drive up to 20A per phase. Housed in a very small 5x5mm TQFN Packge, this device can be operated from 100kHz to 1MHz operation. The IC is intended to work with 3.3V tri-state output controllers. The MP86963 is ideal for notebook applications where efficiency and small size are a premium.

Specification:

• Wide 4.5V to 21V Operating Input Range
• 20A Output Current • Simple Logic Interface (3.3V)
• Operate from 100kHz to 1MHz
• Accepts 3-state PWM Input
• Suitable for single-/multi-phase operation
• Available in a 5mm x 5mm TQFN Package
• ROHS6 Compliant

Datasheet:

https://www.monolithicpower.com/pub/media/document/MP86963_r1.22.pdf
