NB669 AEV QFN-16

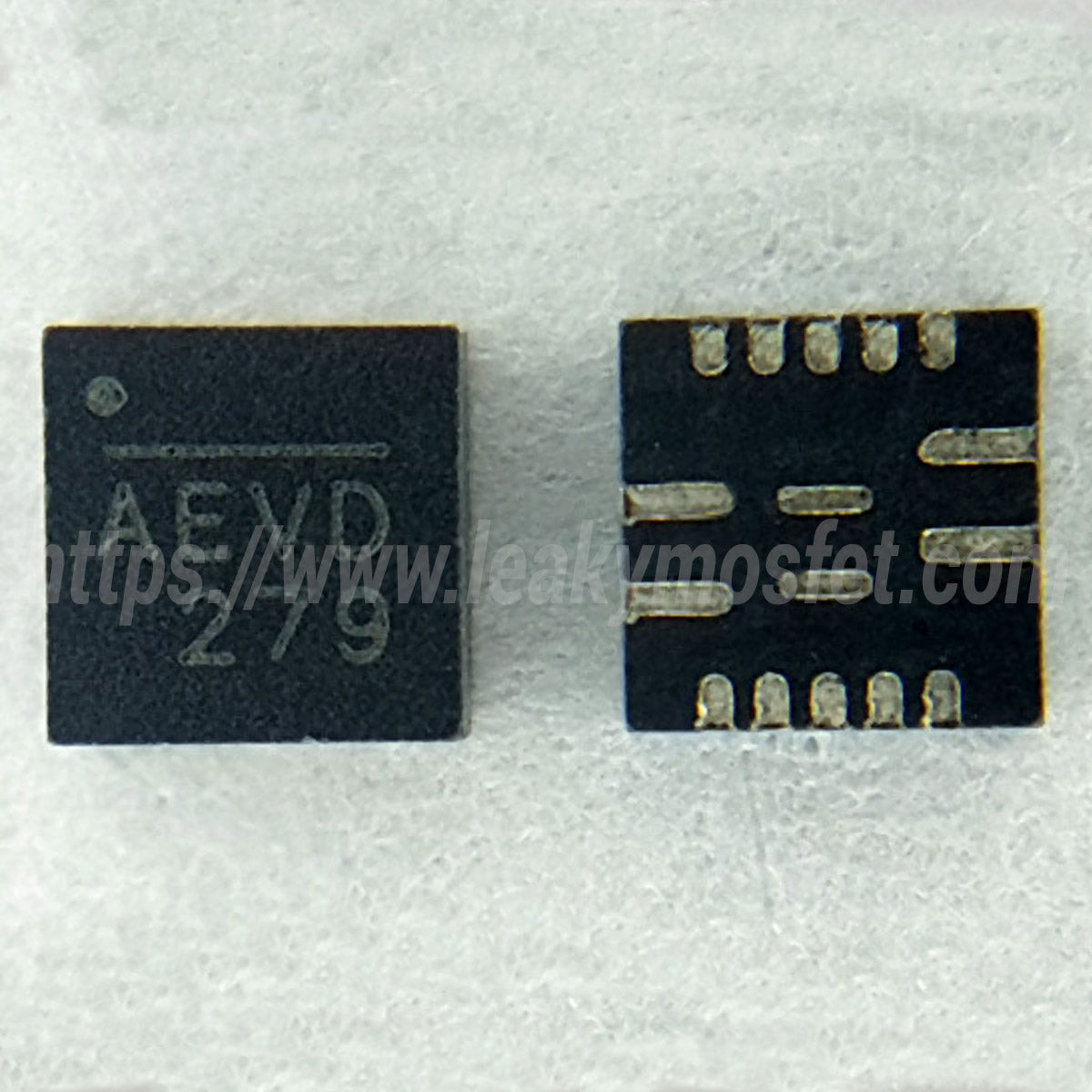

Brand new NB669 AEV QFN-16

The NB669 is a fully integrated high frequency synchronous rectified step-down switch mode converter with 5V fixed output voltage. It offers very compact solution to achieve 6A continuous output current and 9A peak output current over a wide input supply range with excellent load and line regulation. The NB669 operates at high efficiency over a wide output current load range.

Features:

• Wide 6.5V to 24V Operating Input Range
• 5V Fixed Output Voltage
• Built-in 5V, 100mA LDO with Switches
• 6A Continuous Output Current
• 9A Peak Output Current
• 300kHZ CLK for External Charge Pump
• Low RDS(ON) Internal Power MOSFETs
• Proprietary Switching Loss Reduction Technique
• Internal Soft Start
• Output Discharge
• 500kHZ Switching Frequency
• OCP, OVP, UVP Protection and Thermal Shutdown
• Latch off Reset via EN or Power Cycle

Datasheet

https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/NB669/document_id/6421

Keywords:
NB AEXD 669
