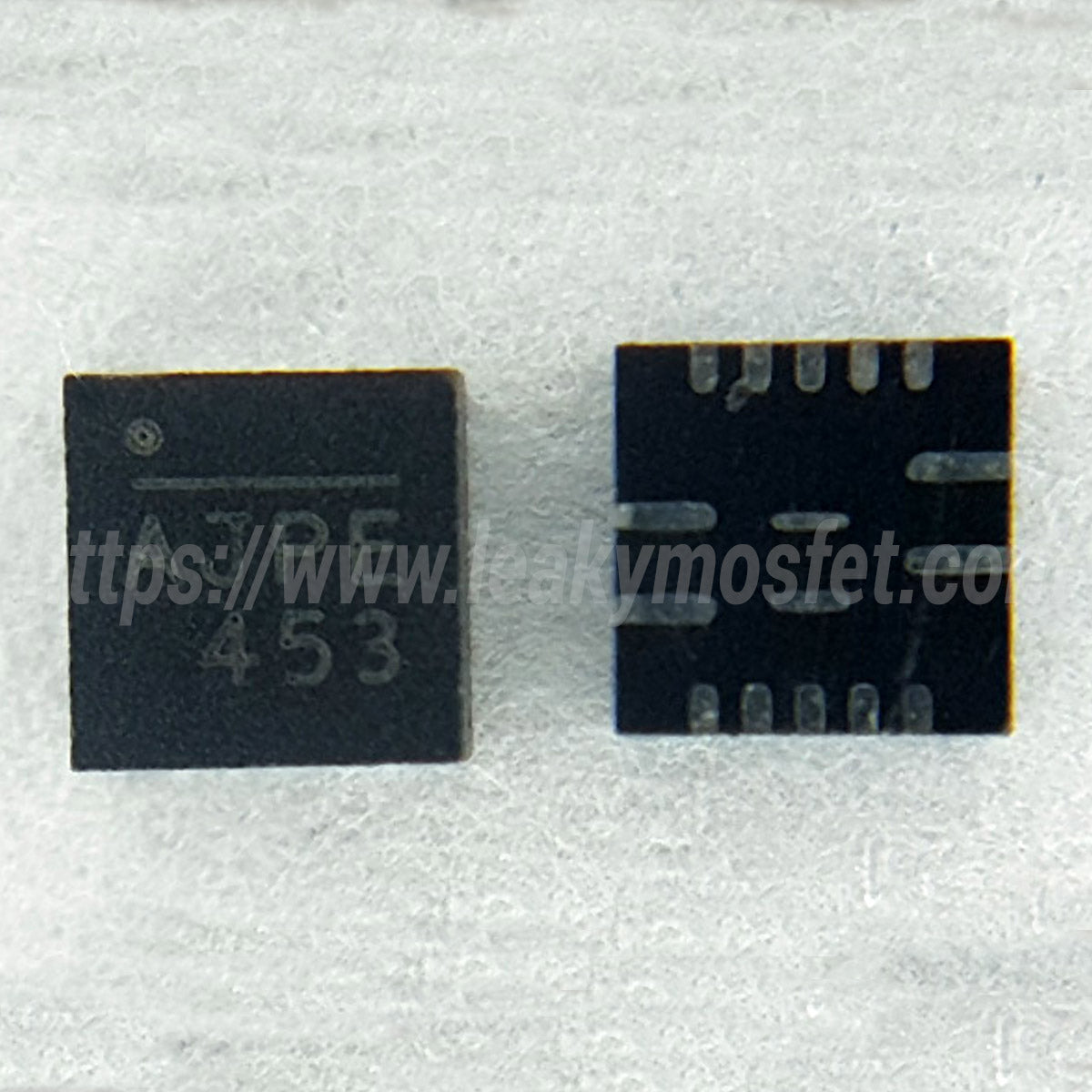

NB671LA AJP QFN-16

Brand new NB671LA AJP QFN-16

The NB671L is the low quiescent current version of NB671. It is a fully integrated high frequency synchronous rectified step-down switch mode converter, which offers very compact solutions to achieve 6A continuous output current and 9A peak current over a wide input supply range with excellent load and line regulation. The NB671L operates at high efficiency over a wide output current load range.

Features:

• Wide 5.5V to 24V Operating Input Range
• 6A Continuous Output Current
• 9A Peak Output Current
• 120μA Quiescent Current
• Low RDS(ON) Internal Power MOSFETs
• Proprietary Switching Loss Reduction Technique
• 1% Reference Voltage
• Internal Soft Start
• Output Discharge
• 500kHZ Switching Frequency
• OCP, OVP, UVP Protection and Thermal Shutdown
• Latch off Reset via EN or Power Cycle.
• Output Adjustable from 0.604V to 5.5V
• Support 5V Output from 5.5V Input

https://www.chipbay.uk/wp-content/uploads/2015/07/NB671L-Datasheet.pdf
