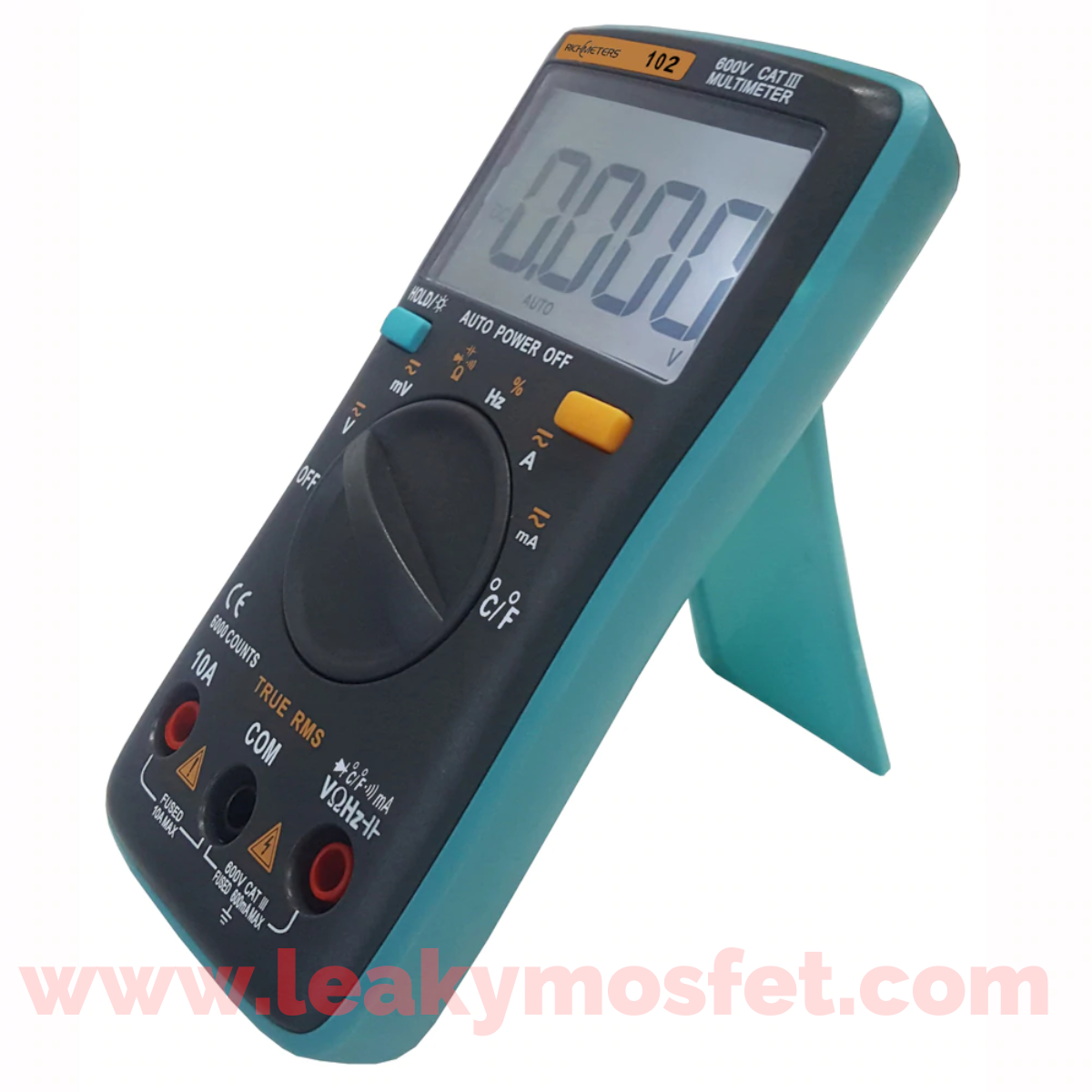

RICHMETERS RM101 RM102 Multifunction Digital Multimeter

RICHMETERS RM101 RM102 Multifunction Digital Multimeter

₱1,900.00 PHP
₱2,500.00 PHP ₱1,900.00 PHP
Sale Sold out
Taxes included.
Model

It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc. This battery powered product uses double-integral style A/D transform as its core, and is characterized by stable function and high reliability. With the features of overload protection and backlight lighted LCD display for clear reading, this product is a perfect tool for lab, factory, radio fans, and family use.

Features:

  • LCD display with backlight.
  • Max. display: 6000 Counts.
  • Automatic polarity identification.
  • Measurement mode: Double-integral style A/D transform.
  • Measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc.
  • RM102 is specially designed with temperature measurement function.
  • Over range indication: OL.
  • Low voltage indication.
  • Auto power off.
  • Sample rate: 3 times per second

Specifications:

  • Model: RM102
  • Maximum display: 6000
  • Working environment: 0-40℃
  • Relative humidity: <80%
  • Supply power: 3V (1.5V battery * 2) (Not included)
  • DC voltage: 600mV/6V/60V/600V/1000V
  • DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
  • AC voltage: 6V/60V/600V/700V
  • AC voltage resolution: 1mV/10mV/100mV/1V
  • DC current: 600μA/6000μA/60mA/600mA/10A
  • DC current resolution: 0.1μA/1μA/10μA/100μA/10mA
  • AC current: 600μA/6000μA/60mA/600mA/10A
  • AC current resolution: 0.1μA/1μA/10μA/100μA/10mA
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
  • Capacitance: 10nF/100nF/1μF/10μF/100μF/1000μF/10000μF
  • Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/1μF/10μF
  • Temperature: -20~1000°C / -4~1832°F(only for RM102)
  • Temperature resolution: 1°C/1°F
  • Item size: Approx. 13 * 6.5 * 3.2cm / 5.1 * 2.56 * 1.26in
  • Item weight: 113g / 3.98oz
  • Package size: 14 * 7 * 5cm / 5.5 * 2.75 * 1.97in
  • Package weight: 182g / 6.42oz (RM101), 202g / 7.13oz (RM102)

    Datasheet:

    https://bit.ly/2D9JoC4

    Package Content:

    • 1 * Multimeter
    • 1 * Pair of test leads
    • 1 * Thermocouple (Only for RM102)
    • 1 * English user manual
