RT8205L/M QFN-24

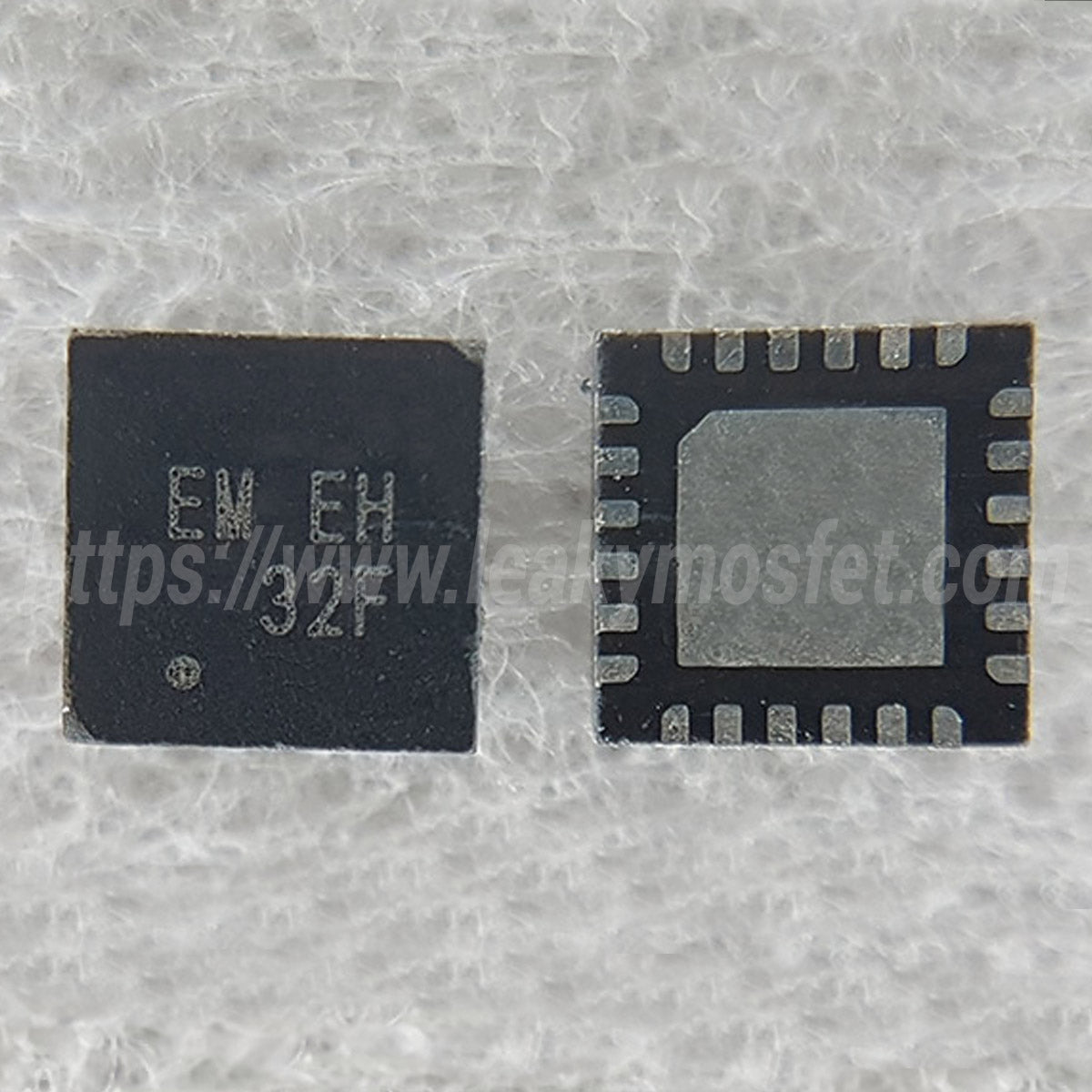

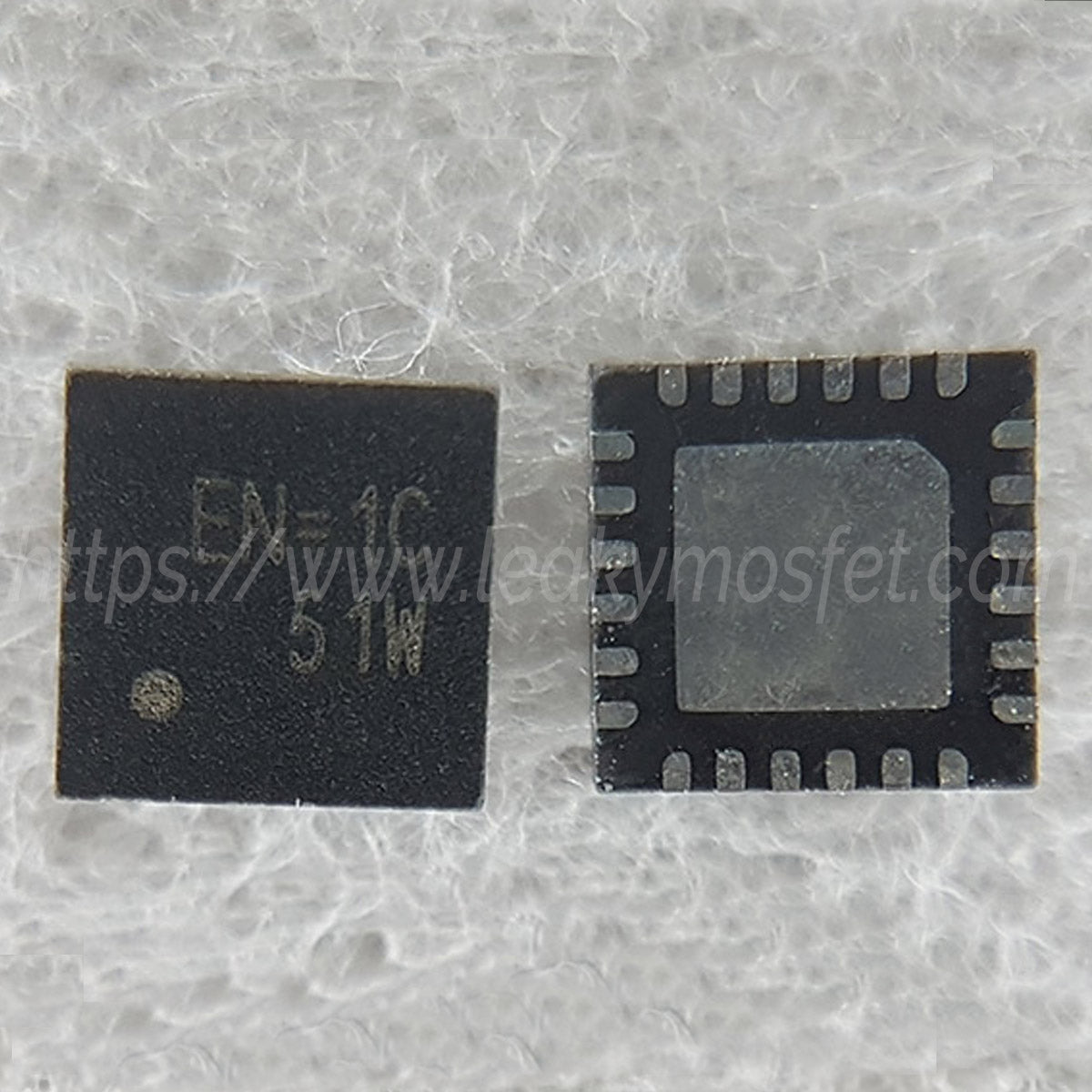

Brand new Richtek High Efficiency, Main Power Supply Controller for Notebook Computer  RT8205L (EM=) RT9205M (EN=) QFN-24

Features:

• Constant On-time Control with 100ns Load Step Response
• Wide Input Voltage Range : 6V to 25V
• Dual Adjustable Outputs from 2V to 5.5V
• Secondary Feedback Input Maintains Charge Pump Voltage (RT8205M)
• Fixed 3.3V and 5V LDO Output : 100mA
• 2V Reference Voltage
• Frequency Selectable via TONSEL Setting
• 4700ppm/°C RDS(ON) Current Sensing z Programmable Current Limit Combined with Enable Control
• Selectable PWM, DEM, or Ultrasonic Mode
• Internal Soft-Start and Soft-Discharge
• High Efficiency up to 97%
• 5mW Quiescent Power Dissipation
• Thermal Shutdown z RoHS Compliant and Halogen Free

Datasheet:

https://www.richtek.com/assets/product_file/RT8205L=RT8205M/DS8205LM-05.pdf
