RT8206M RT8206B QFN-32

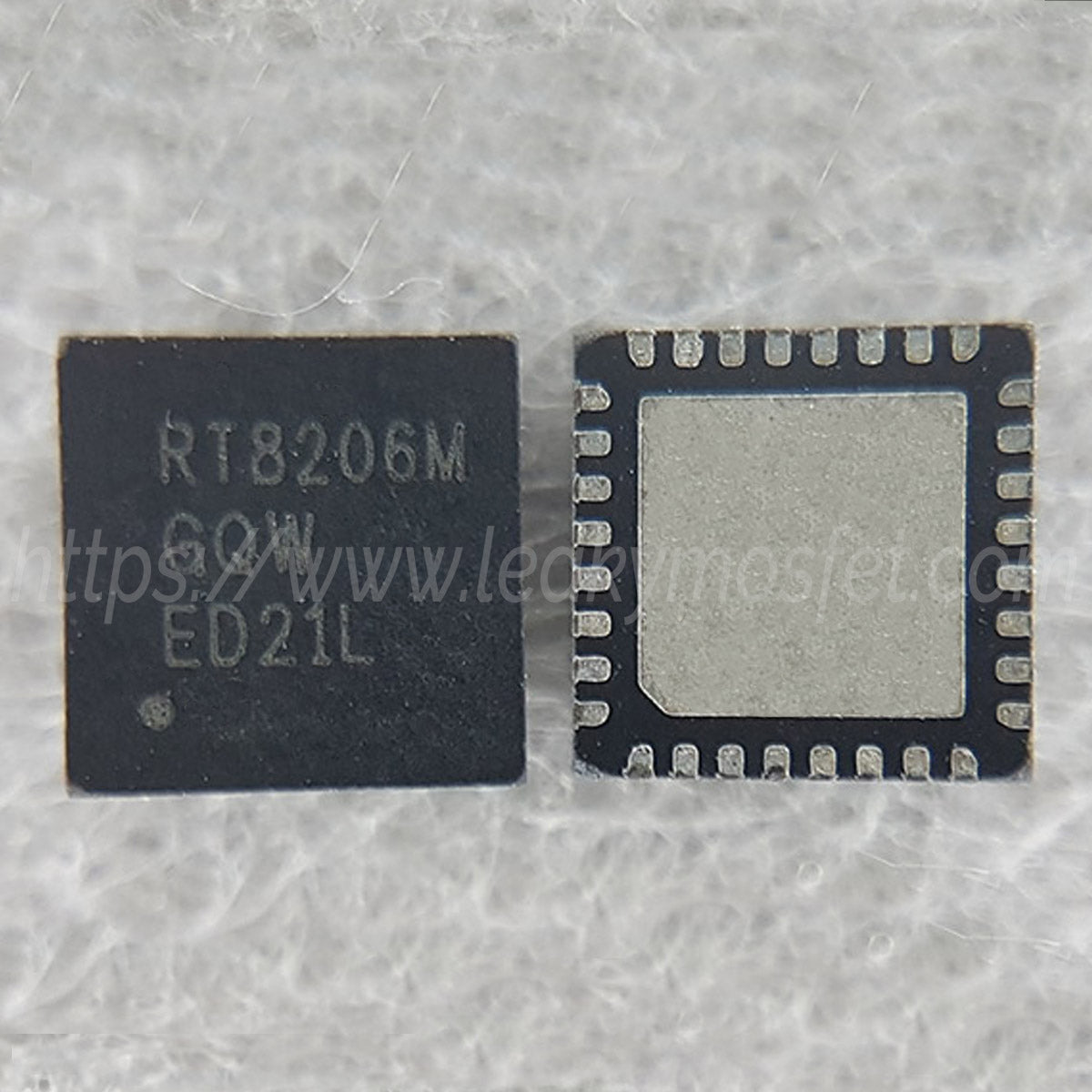

Brand new Richtek RT8206M QFN-32

The RT8206L/M dual step-down, Switch-Mode PowerSupply (SMPS) controller generates logic-supply voltages in battery-powered systems. The RT8206L/M includes two Pulse-Width Modulation (PWM) controllers fixed at 5V/ 3.3V or adjustable from 2V to 5.5V. An optional external charge pump can be monitored through SECFB (RT8206L). This device also features a linear regulator providing a fixed 5V output. The linear regulator provides up to 70mA output current with automatic linear regulator bootstrapping to the BYP input. The RT8206L/M includes on-board power-up sequencing, the power good outputs, internal soft-start, and internal soft-discharge output that prevents negative voltages on shutdown.

Features:

• Wide Input Voltage Range 6V to 25V
• Dual Fixed 5V/3.3V Outputs or Adjustable from 2V to 5.5V, 1.5% Accuracy
• Secondary Feedback Input Maintains Charge Pump Voltage (RT8206A)
• Independent Enable and Power Good
• 5V Fixed LDO Output : 70mA z 2V Reference Voltage ±1% : 50μA
• Constant ON-Time Control with 100ns Load Step Response
• Frequency Selectable via TON Setting
• RDS(ON) Current Sensing and Programmable Current Limit
• Selectable PWM, DEM or Ultrasonic Mode
• Internal Soft-Start with 5 Steps Current Limiting and Soft-Discharge
• High Efficiency Up to 97%
• 5mW Quiescent Power Dissipation
• Thermal Shutdown z RoHS Compliant and Halogen Free

Datasheet:

https://www.richtek.com/assets/product_file/RT8206A=RT8206B/DS8206AB-06.pdf
