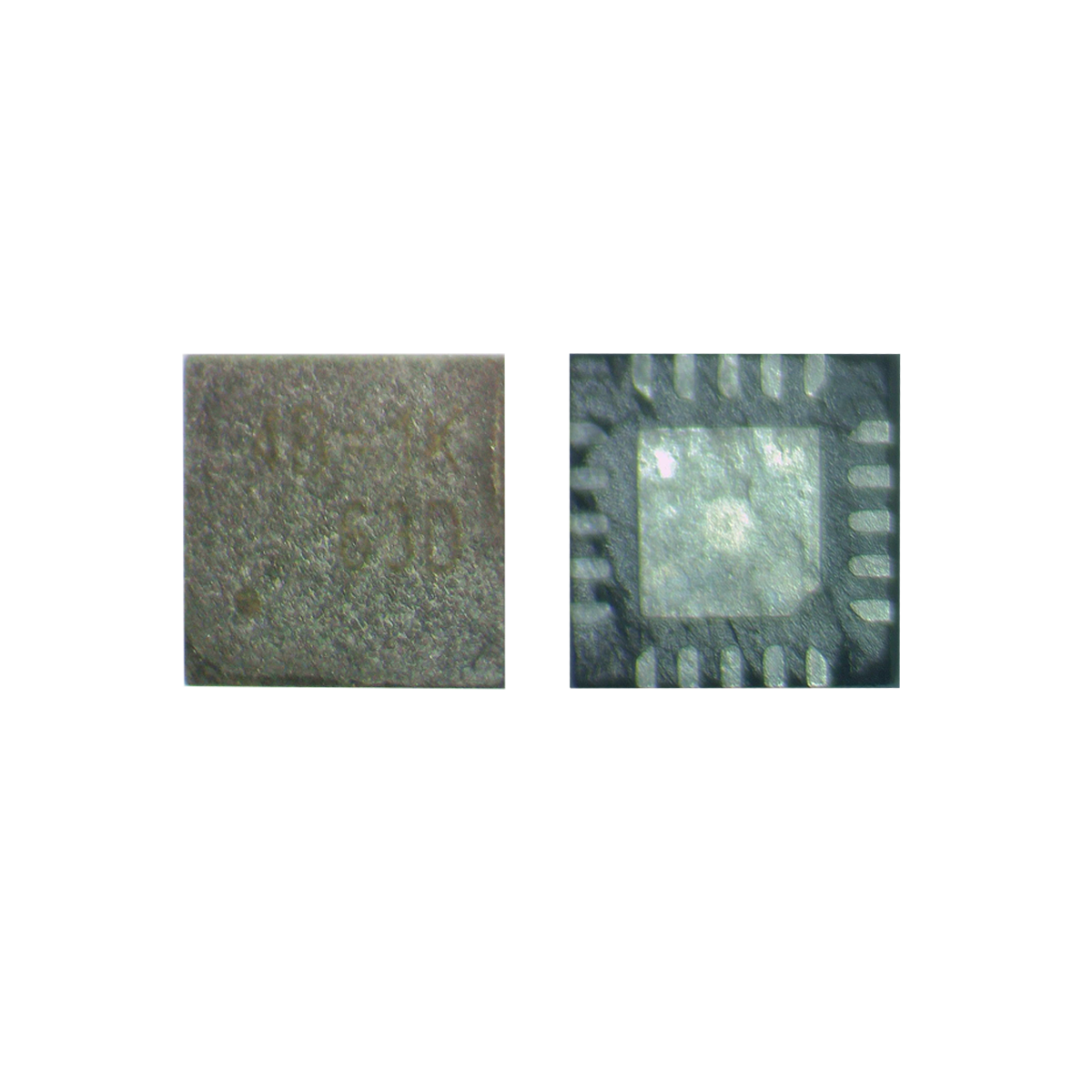

RT8207P 8207 (4B=) MEMORY REG

Description:

The RT8207P provides a complete power supply for both DDRII/DDRIII/Low-Power DDRIII/DDRIV/Low-Power DDRIV memory systems. It integrates a synchronous PWM buck controller with a 1.5A sink/source tracking linear regulator and buffered low noise reference.

Specifications:

• PWM Controller
• Resistor Programmable Current Limit by Low Side RDS(ON) Sense
• Quick Load Step Response within 100ns
• 1% VVDDQ Accuracy Over Line and Load
• Fixed 1.8V (DDRII), 1.5V (DDRIII) or Adjustable 0.75V to 3.3V Output Range for 1.35V (Low-Power DDRIII), 1.2V (DDRIV) and 1.1V (Low-Power DDRIV)
• 4.5V to 26V Battery Input Range
• Resistor Programmable Frequency
• Over/Under Voltage Protection
• Internal Current Limit Ramp Soft-Start
• Drives Large Synchronous-Rectifier FETs
• Power Good Indicator

Datasheet:

https://www.richtek.com/assets/product_file/RT8207P/DS8207P-03.pdf
