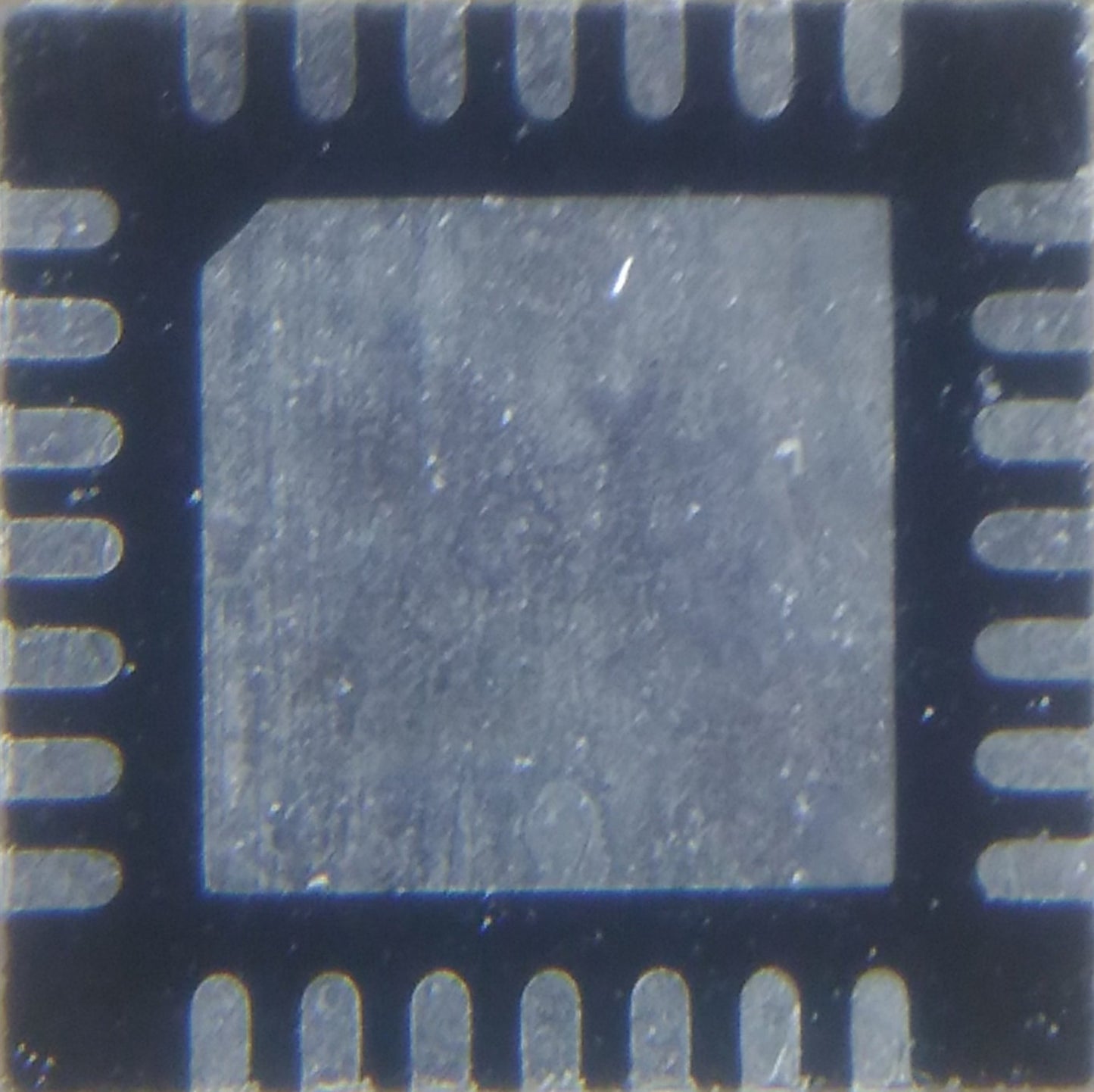

BQ 24745 QFN-28

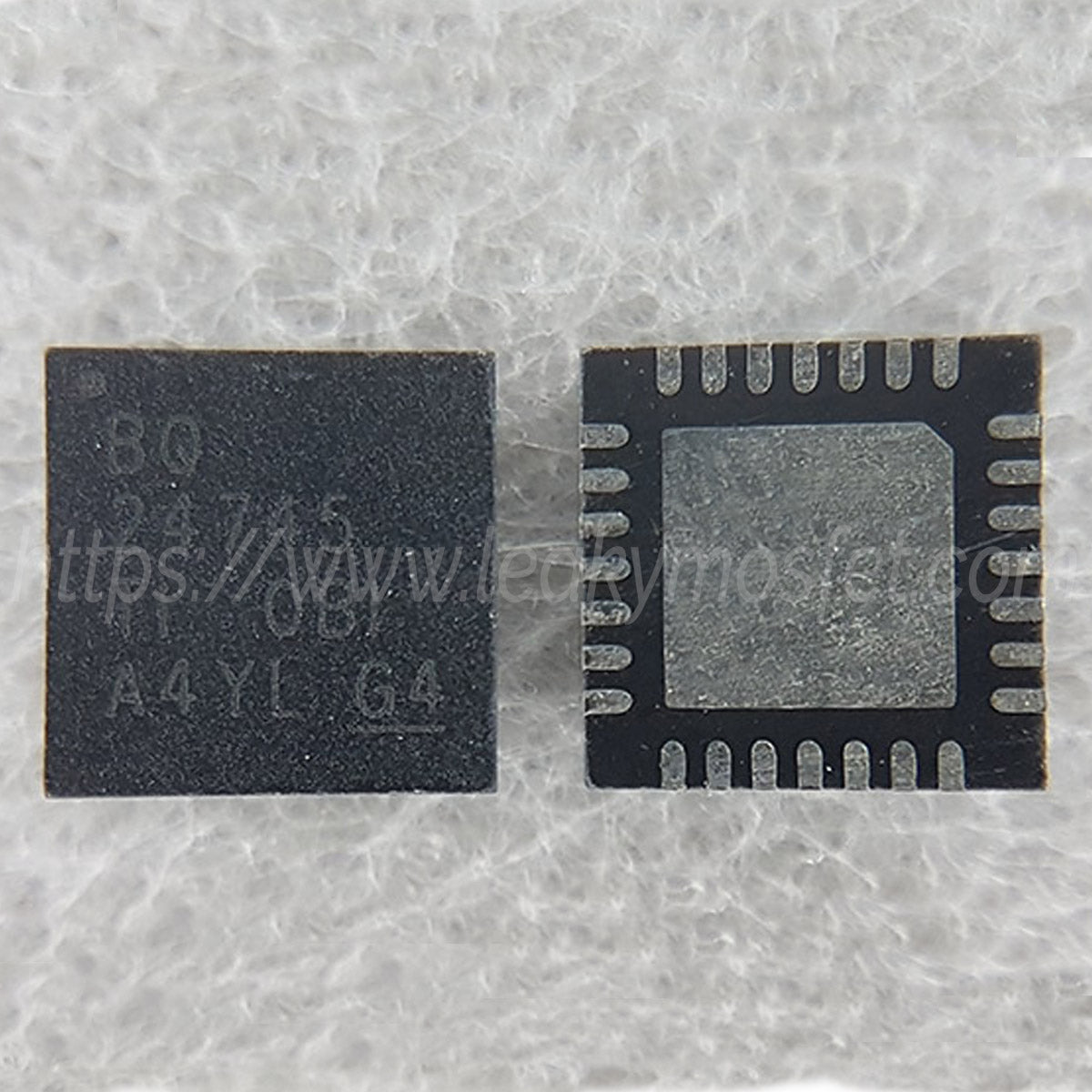

Brand new BQ24745 QFN-28

The bq24745 is a high-efficiency, synchronous battery charger with an integrated input-current comparator, offering low component count for space-constrained, multi-chemistry battery-charging applications. The input-current, charge-current, and charge-voltage DACs allow very high regulation accuracies that can be easily programmed by the system power-management microcontroller using the SMBus interface. The bq24745 charges two, three, or four series Li+ cells, and is available in a 28-pin, 5 mm QFN package.

Features:

• NMOS-NMOS Synchronous Buck Converter with 300-kHz Frequency and >95% Efficiency
• 30-ns Minimum Driver Dead-Time and 99.5% Maximum Effective Duty Cycle
• High-Accuracy Voltage and Current Regulation
• Dynamic Power Management (DPM)
• Up to 19.2-V Battery Voltage
• 7V–24V AC/DC-Adapter Operating Range

Datasheet:

http://www.ti.com/lit/ds/symlink/bq24745.pdf
