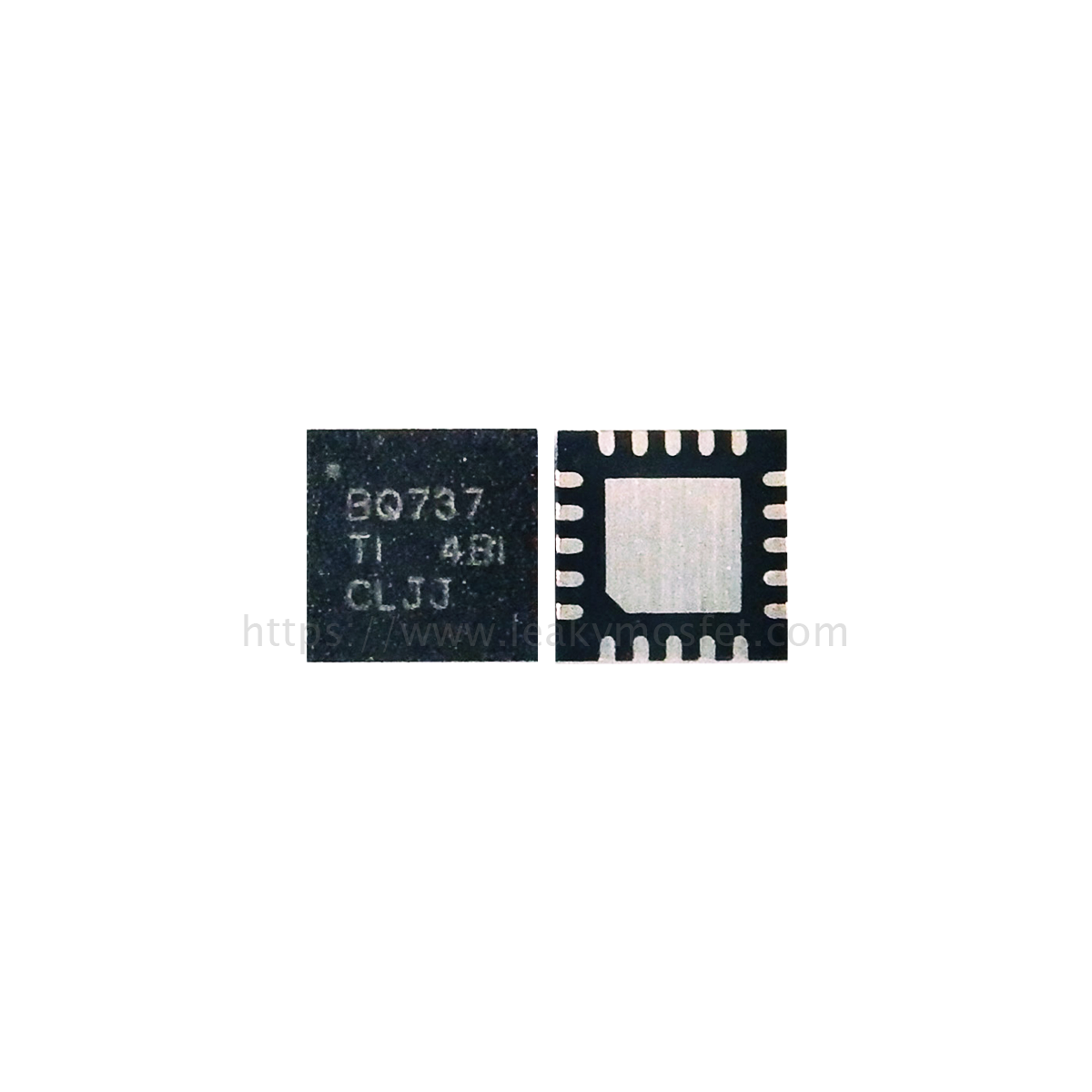

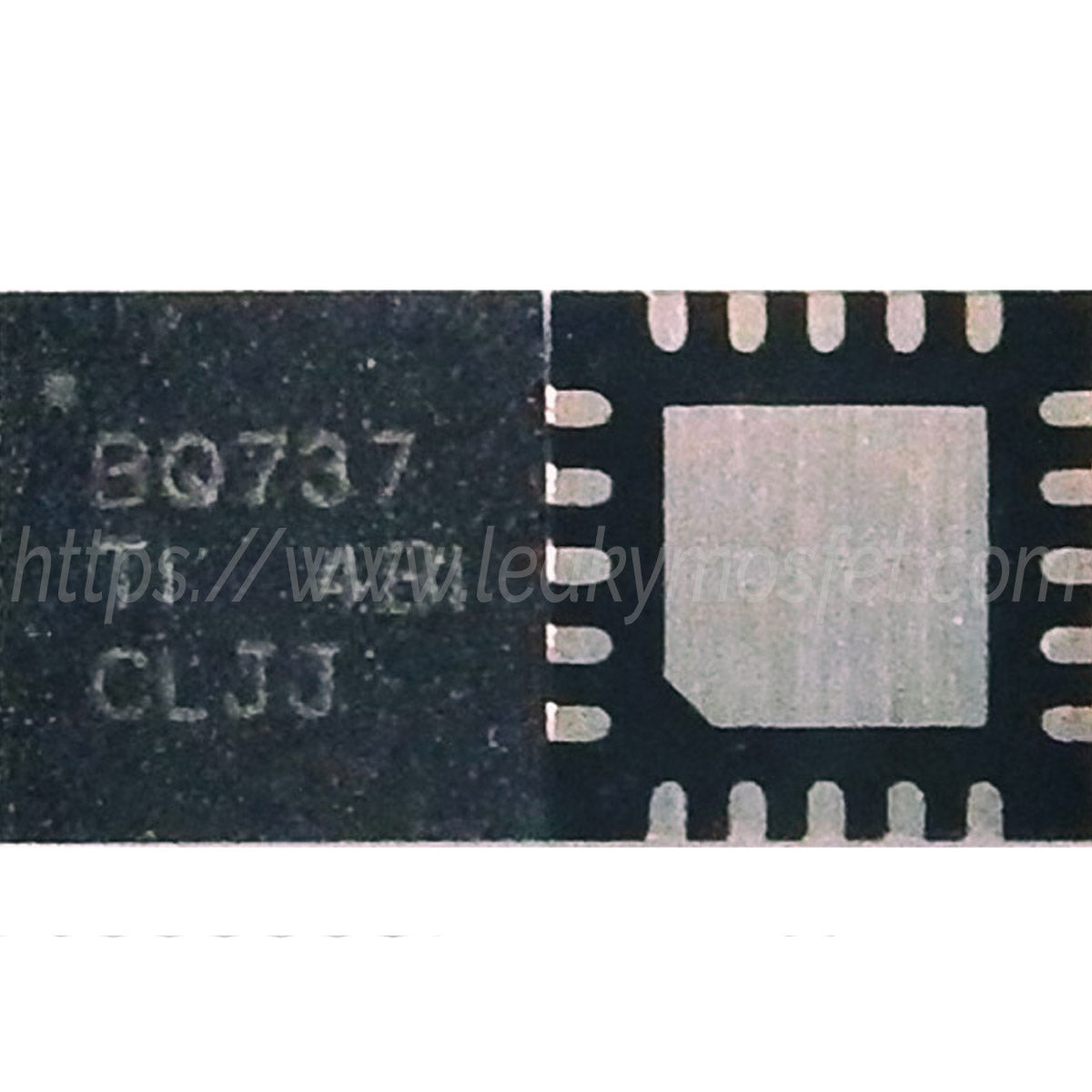

BQ 24737 737 Charging IC QFN-20

Brand new BQ24737 QFN-20

The BQ737 device is a high-efficiency, synchronous battery charger, offering low component count for space-constrained, multi-chemistry battery charging applications.

The bq24737 device supports turbo boost by allowing battery discharge energy to the system when system power demand is temporarily higher than the adapter maximum power level so the adapter will not crash.

The device uses two charge pumps to separately drive N-channel MOSFETs (ACFET RBFET, and BATFET) for automatic system power source selection. SMBus controlled input current, charge current, and charge voltage digital-to-analog converters (DACs) allow for very high-regulation accuracies that can be easily programmed by the system power management microcontroller.
