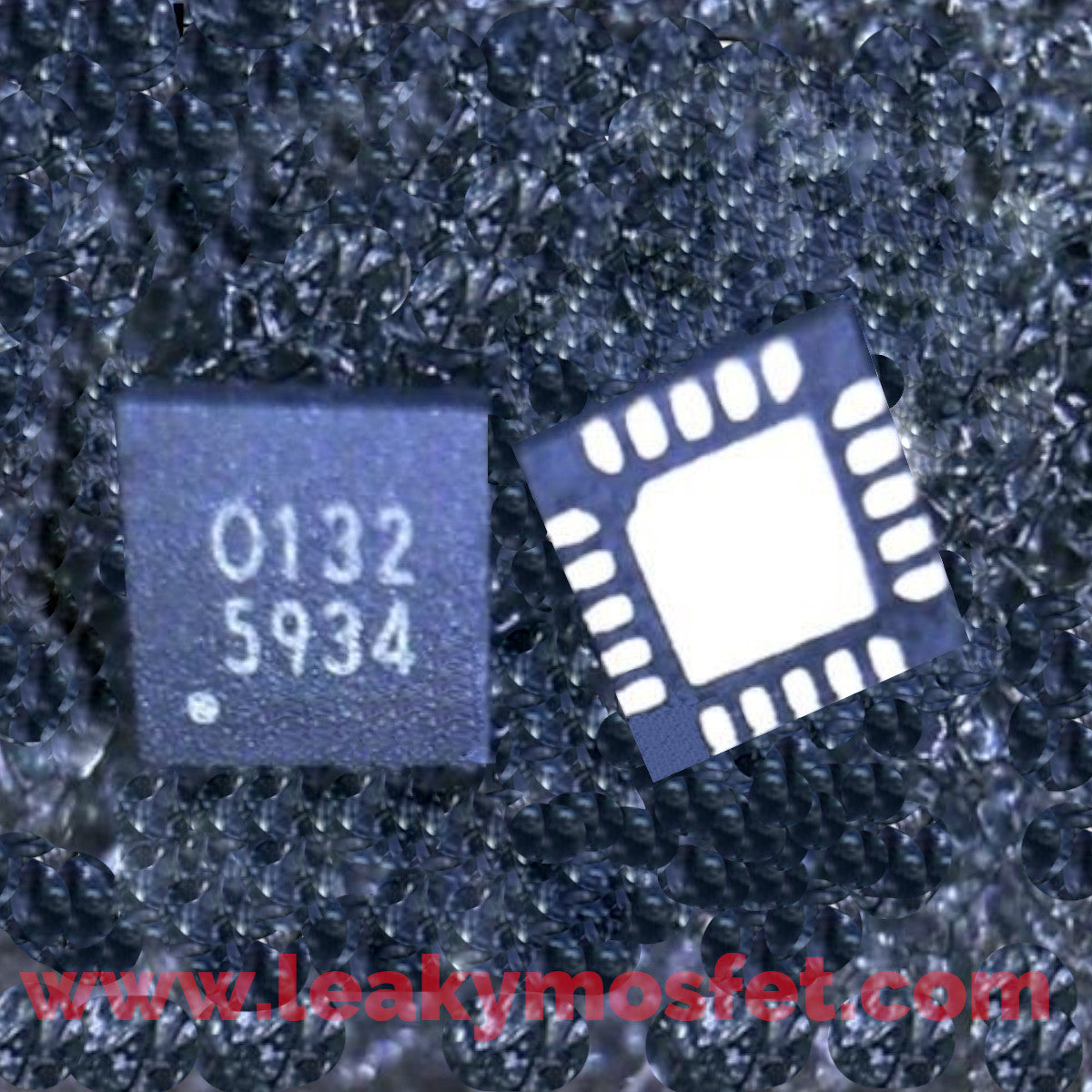

P2806 G5934 QFN-20 Discharge IC

High Voltage 1.5x Charge Pump with Load Switch Controller

The G5934 is a high-voltage switched-capacitor charge pump that provides the regulated output voltage of 1.5x input voltage. Input voltages ranging from 8V to 24V can be converted into a 12V to 36V output supply. The device is ideal for battery-powered conversion applications in notebook computers with a typical operating current of 150µA at 8V supply and 190µA at 24V supply.

Features:

• Input Range: 8V to 24V
• Output Range: 12V to 36V
• 150µA Quiescent Current at 8V Supply Voltage and 190µA Quiescent Current at 24V Supply Voltage
• ±3% Regulated Output
• Power Good Function
• Power Good of Open Drain (Monitor AC VIN Only)
• Embedded a 12-V LDO „ 4 Control Signal Inputs
• 4 12V-Drivers for external NMOS switches
• 4 Discharging Networks for 22Ω
• Over-Temperature Protection
• Output Short Circuit Protection
• TQFN3X3-20 Package

Datasheet:

https://bit.ly/2RKEgrm
