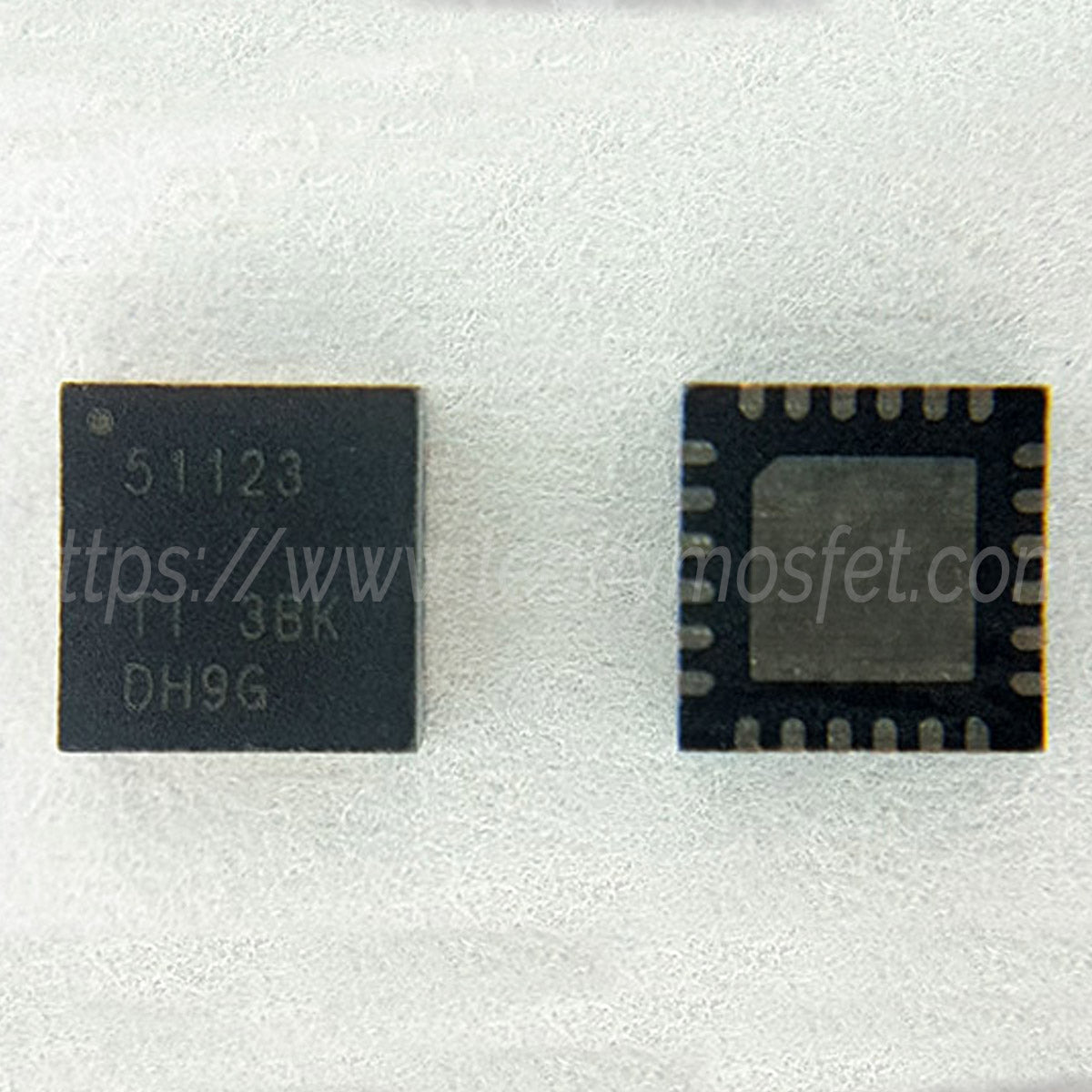

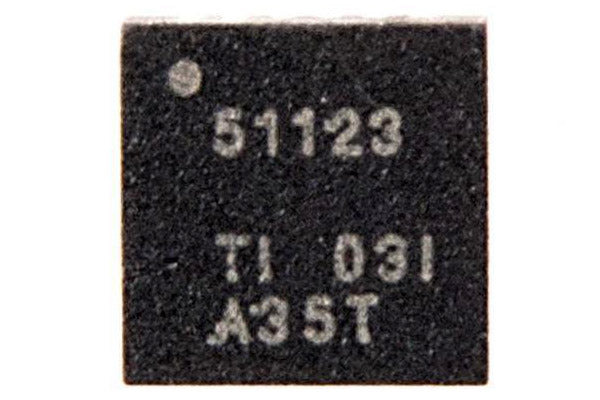

TPS 51123 QFN-24

The TPS51123 is a cost-effective, dual-synchronous buck controller targeted for notebook system power supply solutions. It provides 5-V and 3.3-V LDOs and requires few external components. The TPS51123 supports high efficiency, fast transient responses and provides a combined power-good signal.

Out-of- Audio mode light-load operation enables low acoustic noise at much higher efficiency than conventional forced PWM operation.

Adaptive on time D-CAP control provides convenient and efficient operation. The part operates with supply input voltages ranging from 5.5 V to 28 V and supports output voltages from 2 V to 5.5 V. The TPS51123 is available in a 24-pin QFN package and is specified from -40°C to 85°C ambient temperature
range.

Compatibility:

RT8223P RT8205B TPS51125 G5608 UP6182

Note: Verify pin 18 if used as VLCK, ENC or NC

Features:

• Wide-Input Voltage Range: 5.5 V to 28 V
• Output Voltage Range: 2 V to 5.5 V
• Built-in 100-mA 5-V/3.3-V LDO with Switches
• Built-in 1% 2-V Reference Output
• 4500 ppm/°C RDS(on) Current Sensing
• Built-In Output Discharge
• Power Good Output
• Built-in OVP/UVP/OCP
• Thermal Shutdown (Non-latch)
• 24-Pin QFN (RGE) Package
