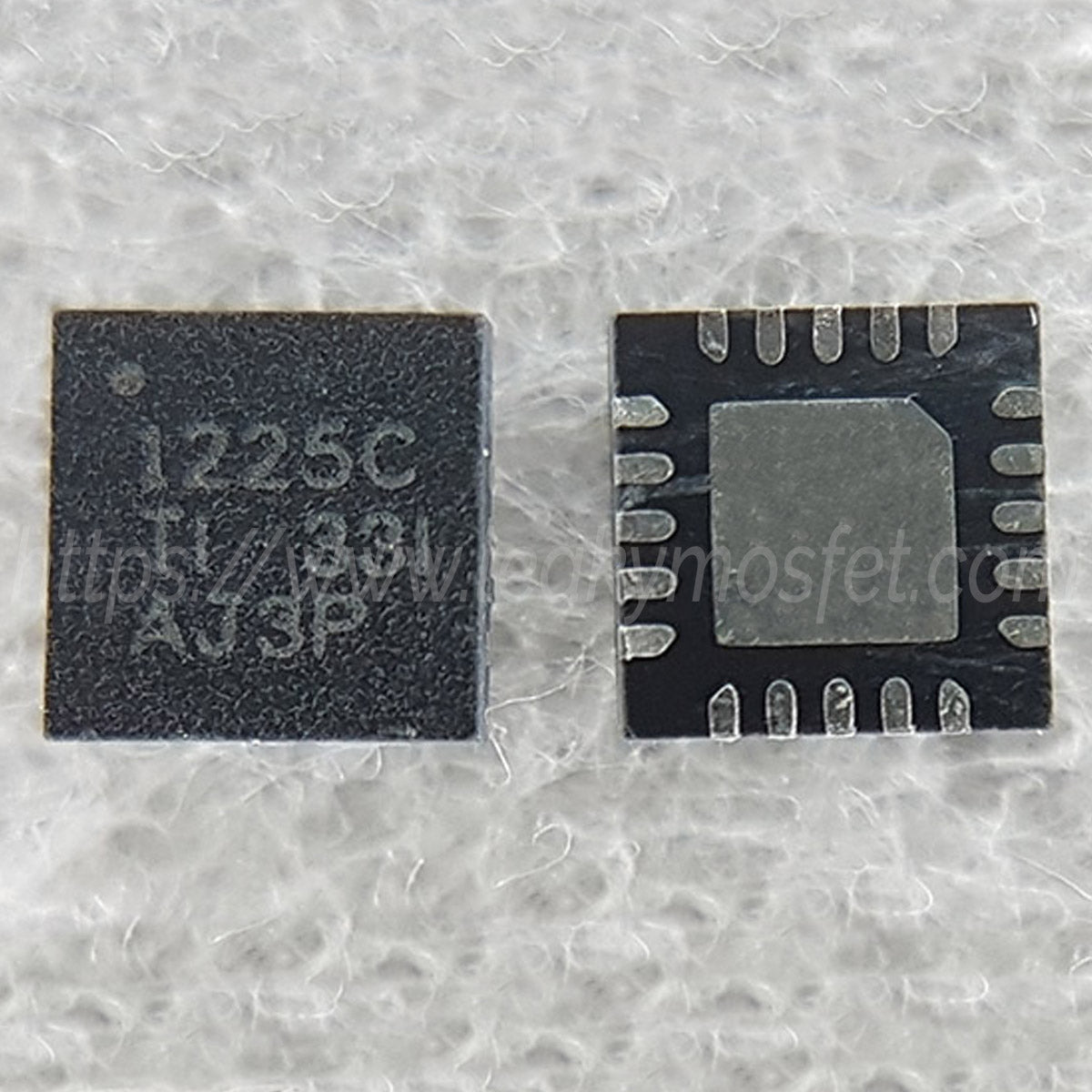

TPS51225C 51225 QFN-20

Brand new TPS51225/C

The TPS51225/B/C is a cost-effective, dual-synchronous buck controller targeted for notebook system-power supply solutions. It provides 5-V and 3.3-V LDOs and requires few external components.

The 260-kHz VCLK output can be used to drive an external charge pump, generating gate drive voltage for the load switches without reducing the main converter efficiency.

Compatibility:

TPS51275 51275

Features:

• Input Voltage Range: 5.5 V to 24 V
• Output Voltages: 5 V and 3.3 V (Adjustable Range ±10%)
• Built-in, 100-mA, 5-V and 3.3-V LDOs
• ±1% Reference Accuracy
• Adaptive On-time D-CAP™ Mode Control
• OOA Light Load Operation (TPS51225B)
• Internal 0.8-ms Voltage Servo Soft-Start
• Built-in Output Discharge Function
• Separate Enable Input for Switchers
• Dedicated OC Setting Terminals
• Power Good Indicator
• OVP/UVP/OCP Protection
• Non-latch UVLO/OTP Protection
• 20-Pin, 3 mm × 3 mm, QFN (RUK)

Datasheet:

http://www.ti.com/lit/ds/symlink/tps51225b.pdf
