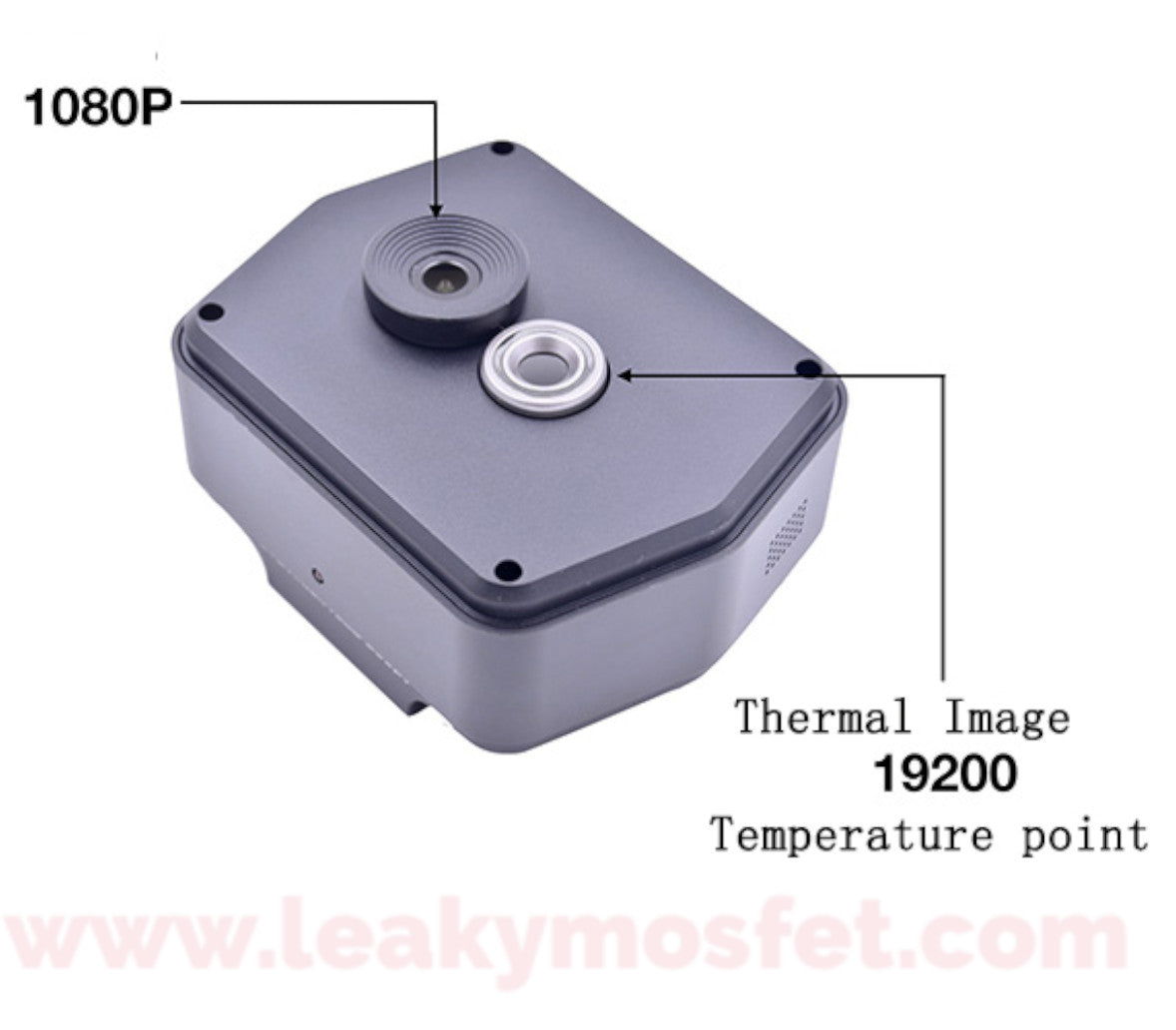

PCB Thermal Imager/Analyzer

 PCB Thermal Imager/Analyzer is a PCB diagnostic instrument combined with intelligent analysis software can be used to detect the temperature of the components in the board.  It can quickly and precisely locate the overheating shorted or leaky component thereby improving the accuracy of identifying faulty component and efficiency of the repair process.

Specifications:

• Detector Uncooled - Vanadium oxide detector
• Resolution -  160*120
• Wavelength range - 7.5-13.5
• Lens angle - 57° x 44°
• Visible light parameter Resolution - 1920 *1080
• Display mode - Visible light / infrared thermal image / double light interlacing
• Power consumption Input supply voltage - 5-26 V DC
• Temperature measurement function - Full temperature measurement
