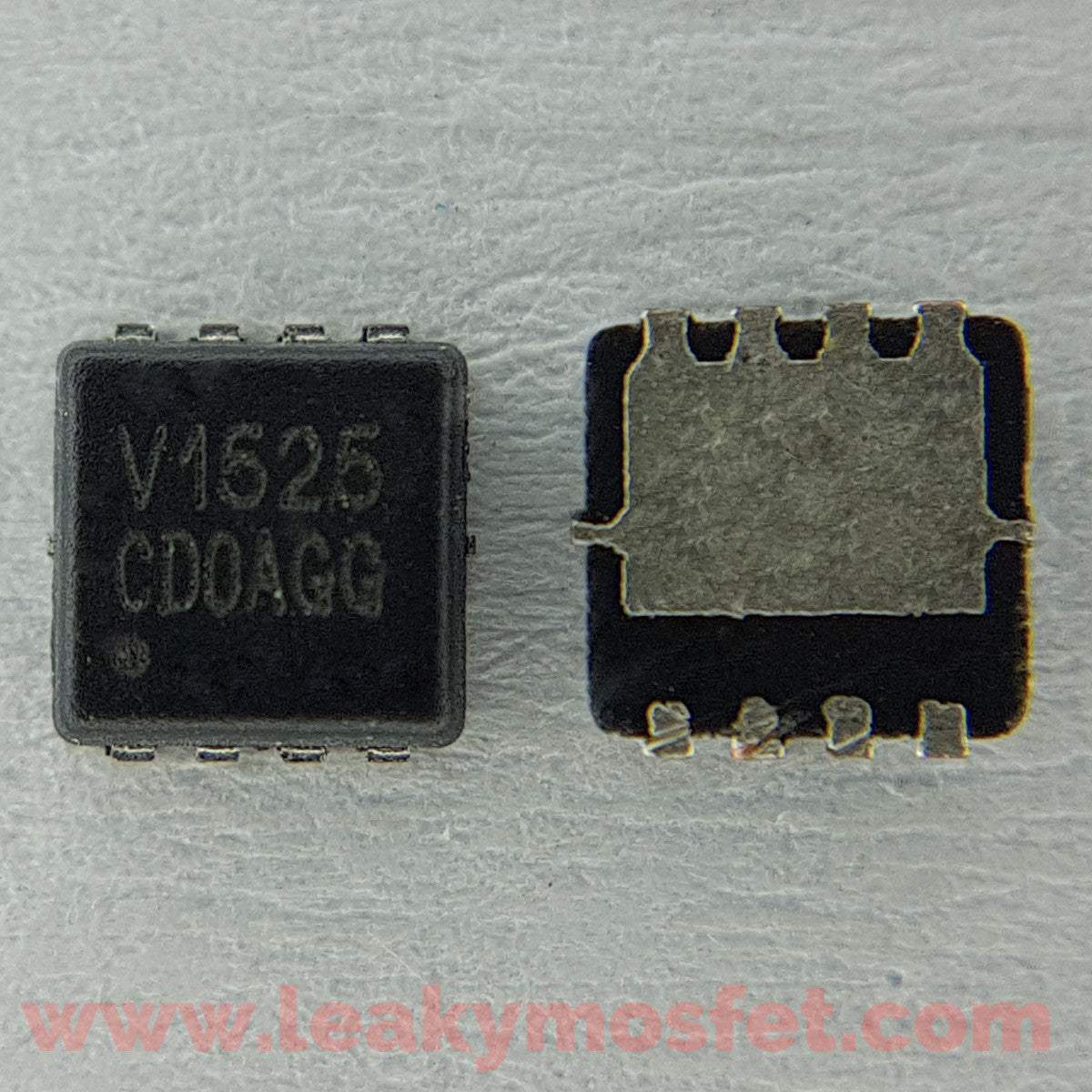

MDV1525 V1525 1525 Single N-Channel MOSFET DFN3x3

Brand new MDVV1525 DFN

The MDV1525 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality. MDV1525 is suitable for DC/DC converter and general purpose applications.



Features:

• VDS = 30V
• ID = 24A @VGS = 10V
• RDS(ON) < 10.1mΩ @VGS = 10V < 14.0mΩ @VGS = 4.5V
• 100% UIL Tested
• 100% Rg Tested

Datasheet:

http://www.magnachip.com/userfiles/PowerSolutions/MDV1525.pdf
