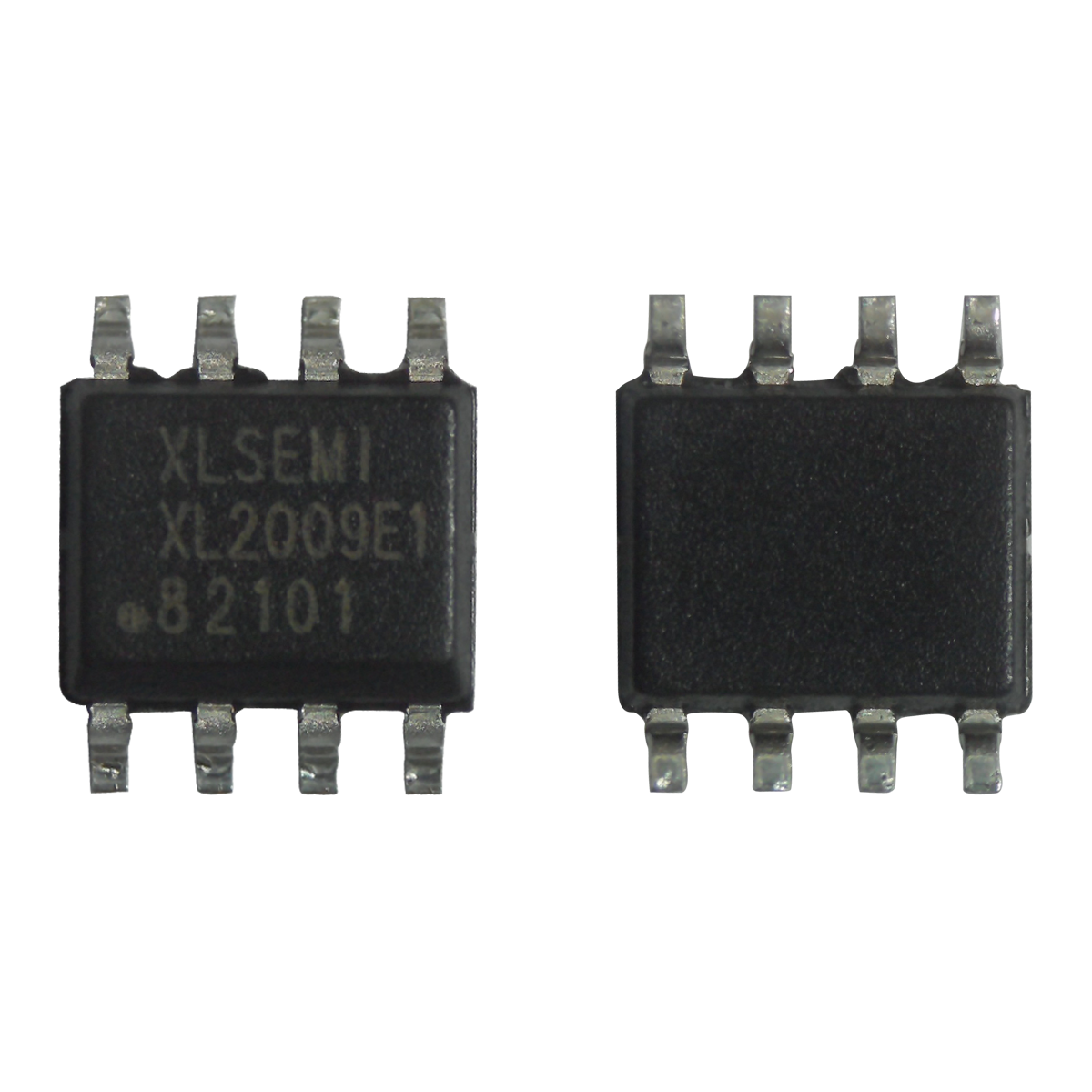

XL2009E1 2009E1 SOP8

Description:

The XL2009 is a 180 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

Features:

• Wide 8V to 36V Input Voltage Range
• Output Adjustable from 1.25V to 32V
• Maximum Duty Cycle 100%
• Minimum Drop Out 0.3V
• Fixed 180KHz Switching Frequency
• Maximum 3A Switching Current
• Internal Optimize Power MOSFET
• High efficiency
• Excellent line and load regulation
• With output constant current loop
• Built in thermal shutdown function
• Built in current limit function
• Built in output short protection function
• Available in SOP8L package

Datasheet:

https://bit.ly/2Kmlw1p
